2600mm Professional Drip Coating Machine for Plastic PVC Dots on Carpets at 5-45m/min

Large Image : 2600mm Professional Drip Coating Machine for Plastic PVC Dots on Carpets at 5-45m/min

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	GAOQI

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$46,000.00/sets >=1 sets
Packaging Details:	standard export container: inner packing type: film<br>external packing type: wooden case
Supply Ability:	30 Set/Sets per Month dot coating laminating machine

Contact Now

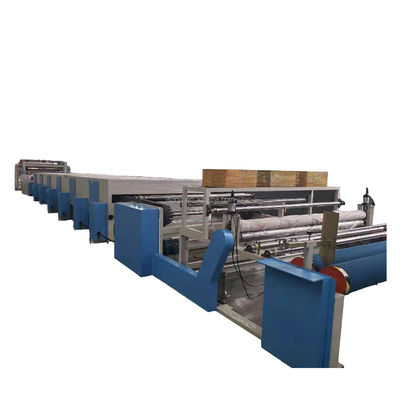

2600mm Professional Drip Coating Machine for Plastic PVC Dots on Carpets at 5-45m/min

Description

Condition:	New	Applicable Industries:	Garment Shops, Manufacturing Plant, Other
Weight (KG):	6000	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2023	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Warranty:	1 Year
Brand:	Brand	Power Supply:	380V, 50Hz, Three-phase
Oven:	12M	Process Speed:	5-45m/min
Power:	120KW	Temperature Control:	PID Automatic
Size:	23600 * 2500 * 2100mm	Cooling Mode:	Air Cooling
Dispensing Method:	Round Dot Plastic	Delivery Time:	30DAYS

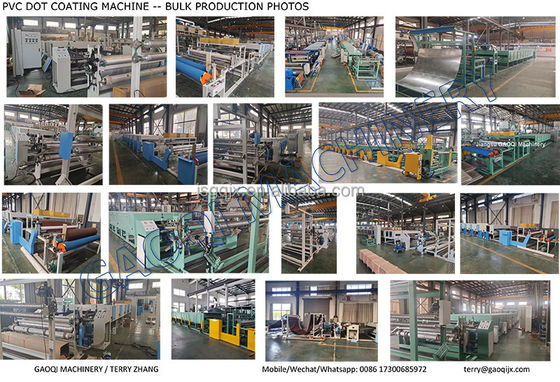

OUR FACTORY

PRODUCT PARAMENTERS

Technical working Process:
Anti-deviation feeding cloth-screen dot printing-automatic far infrared needle loading-needle plate stenter electric heating drying-automatic needle removal-air cooling-counting-rewinding.

Brand	GAOQI
Power	380V, 50Hz, three-phase
Oven	12M-25M
Process speed	5-45m/min
Power	120KW
Temperature control	PID automatic
size	23600 2500 2100mm
Cooling mode	air cooling
Dispensing method	round dot plastic

Application:

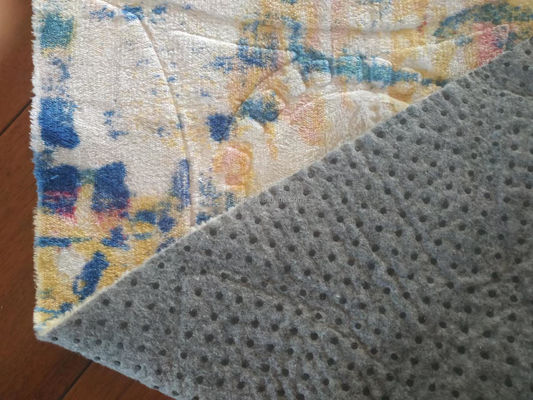

This machine can be used to print plastic dots and various flower-shaped dots on cotton, chemical fiber, blended, non-woven fabrics and other fabrics. It is used for the production of knitted dot plastic glove fabrics, decorative cloths and carpets, etc., which has a non-slip effect.
