Automatic 3D Foil Pattern Heat Printing Machine for Fabric/Leather/Polyester 8000 KG

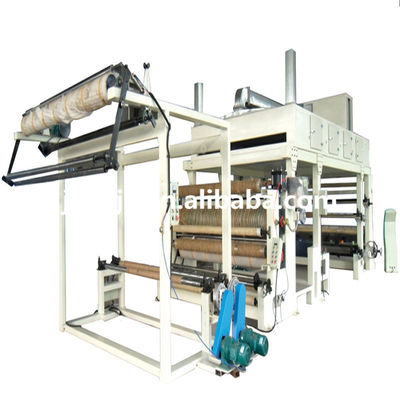

Large Image : Automatic 3D Foil Pattern Heat Printing Machine for Fabric/Leather/Polyester 8000 KG

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	GAOQI
Certification:	CE
Model Number:	GQ-SSTJ2000

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$39,999.00 - $139,000.00/sets
Packaging Details:	3d foil pattern auto registing transfer heat printing machine for fabric/leather/polyester <br>inner Package : Protective Film <br>External Package: Standard Export Container
Supply Ability:	30 Set/Sets per Month

Contact Now

Automatic 3D Foil Pattern Heat Printing Machine for Fabric/Leather/Polyester 8000 KG

Description

Type:	Heat Press Machine	Applicable Industries:	Manufacturing Plant
Condition:	New	Plate Type:	GRAVURE
Usage:	Garment, Cloths Printer	Automatic Grade:	Automatic
Color & Page:	Multicolor	Voltage:	380V/220V/customized
Dimensions(LWH):	1500030004300 Mm	Weight:	8000 KG
Warranty:	12 Months	Key Selling Points:	Automatic
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor, PLC
Driven Type:	Electric	After Warranty Service:	Online Support
Marketing Type:	New Product 2020	Port:	Shanghai Port

Product
Hot Foil Printing Machine for Fabric

Features:
1. Left and right movable blade is equipped to effectively protect the blade as well as the engraved roller, also to guarantee great bronzing/stamping effect.
2. High efficient heating tunnel with air circulating makes sure the heating even, fast speed, energy saving, and great effect.
3. The unwinding device with constant tension control system ensures the material in a tight state. Equipped with manual adjustment device to keep the material run in the correct way.
4. Using oil heated silicone roller with large contact surface and hydraulic press units, conducting a more stable and consistent pressure on material to ensure the bronzing effect.
5. Equipped with winding device both in front of and at the back of the machine, making a high applicable, easy and compact winding.
6. User friendly operation system is designed to make it easy to get in.

Brand	GAOQI
Power supply	380V, 50Hz, three-phase
Process speed	10-40m/min
Install capacity	About 75KW
Heating method	Electrical heating
Glue applying method	Blade on roller

Two Bronzing Technology
Special Bronzing:
Cloth feeding----Gluing of printing roller----Pre-drying----Hot pressing and laminating of bronzing film----Cloth and film separation----The finished products rewinding
General Bronzing:
Bronzing film feeding----Gluing of printing roller----drying in the bridge type oven----cloth feeding, heat pressing and laminating----The finished products rewinding----thermal room----Cloth and film separator

Application:
The machine is suitable for bronzing, single printing, pressing on the surface of various kinds of cotton, linen, silk, blended and knitted fabrics; and can also be used as a wrinkle fabric of gluing and laminating. Suitable for mass production of broad-band bronzing products, like home textiles, leather color changing, etc.
