Inspection and Rolling Machine for Knitted Woven Fabric at 2000mm1200mm1200mm Size

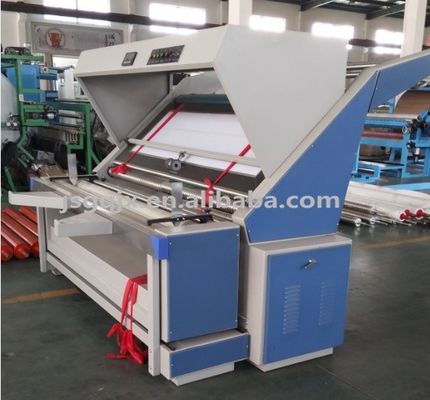

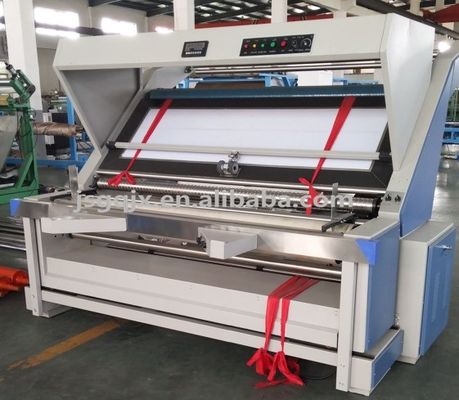

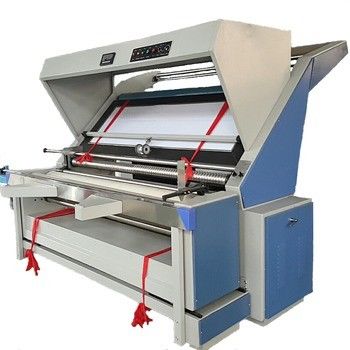

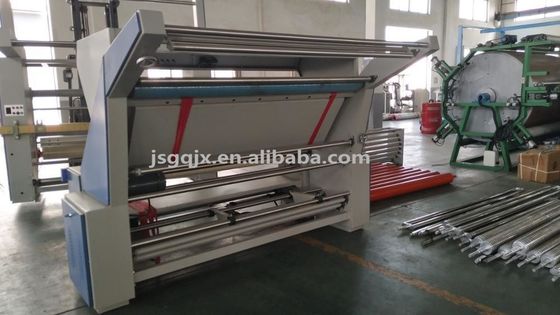

Large Image : Inspection and Rolling Machine for Knitted Woven Fabric at 2000mm*1200mm*1200mm Size

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	GAOQI
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$5,800.00/sets >=1 sets
Packaging Details:	Inner Package:Protective Film,etc. <br>Outside Package:Wooden Case
Supply Ability:	100 Set/Sets per Month Fabric Inspection Machine

Contact Now

Inspection and Rolling Machine for Knitted Woven Fabric at 2000mm1200mm1200mm Size

Description

Applicable Industries:	Manufacturing Plant, Other	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2022	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Condition:	New
Automatic Grade:	Automatic	Voltage:	380V/220V/customized
Power:	1.5KW	Dimension(LWH):	2000mm1200mm1200mm
Weight:	300 KG	Warranty:	1 Year
Name:	Fabric Inspection Machine	After-sales Service Provided:	Online Support
Port:	Shanghai Port

Application:
This machine is used for the inspection and rolling of finished products. It is also suitable for the winding of laminated materials. The width cutting device can be added according to the needs of customers,so as to get an ideal width.

Features:
It uses box iron frame and integrates rolling and inspection.
1.Compact structure, simple operation, small sized and high availability. It is good in quality and user friendly in design.
2. It can use frequency control or adjustable-speed motor to regulate speed within a certain limit. It features easy operation.The computer controlled timing is conducive to site management as it can read the length of time.
3. Customers may choose: Infrared ray photo electricity edging control, hydraulic edging adjustment system with difference smaller than 5 mm.

Main technical parameters:

Machine Name	Fabric Inspection Machine
Effective Width	1800mm
Max. Material Width	1600mm
Inspecting speed	0-60m/min
Voltage	380V/220V
Power	1.5 KW
Net Weight	300 kg
Dimensions (LWH)	2000mm x 1200mm x 1200 mm
