Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p

Large Image : Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	GAOQI
Certification:	ce

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$36,000.00 - $99,999.00/sets
Packaging Details:	Inner Package : Protective Film <br>External Package: Standard Export Container
Supply Ability:	30 Set/Sets per Month

Contact Now

Fabric Anti Slip Dot Coating Machine for Customized Carpet Back Voltage 380v/50hz/3p

Description

Type:	Coating Machine	Applicable Industries:	Manufacturing Plant
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Condition:	New
Application:	APPAREL, Textiles, Non-slip Seat Cover,production Of Knitted And Dotted Gloves,etc	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380v/50hz/3p
Packaging Type:	Film	Packaging Material:	Plastic
Dimension(LWH):	20150mm2740mm2080mm	Weight:	15000 KG
Warranty:	1 Year	Key Selling Points:	High-accuracy
COLOR:	Customized	Dimensions(mm):	20150mm2740mm2080mm
Function:	Print Plastic Round Dots On Fabrics	After-sales Service Provided:	Online Support
Operating Type:	Left Hand Or Right Hand	Oven Length:	12L / 15L / 18L Or More
Gluing Method::	Drip Moulding Screen Roller	Machine Width::	1800mm-4500mm (electric Amplitude Modulation)
Marketing Type:	New Product 2022	Port:	Shanghai Port

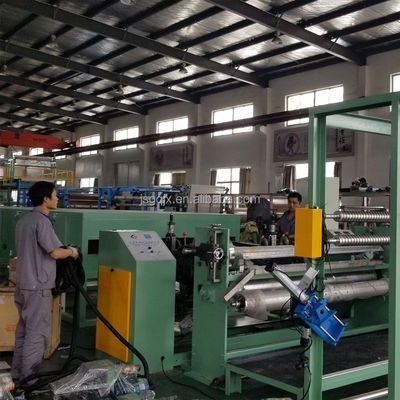

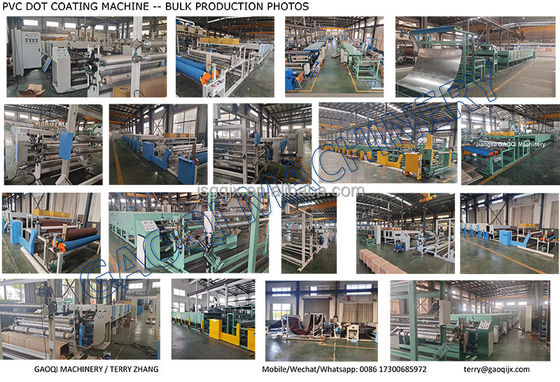

OUR FACTORY

SOLUTION:
We provide customized machines with many years of experience

PRODUCT PARAMENTERS

Technical working Process:
Anti-deviation feeding cloth-screen dot printing-automatic far infrared needle loading-needle plate stenter electric heating drying-automatic needle removal-air cooling-counting-rewinding.

Brand	GAOQI
Power	380V, 50Hz, three-phase
Oven	12M-25M
Process speed	5-45m/min
Power	120KW
Temperature control	PID automatic
size	23600 2500 2100mm
Cooling mode	air cooling
Dispensing method	round dot plastic

Application:

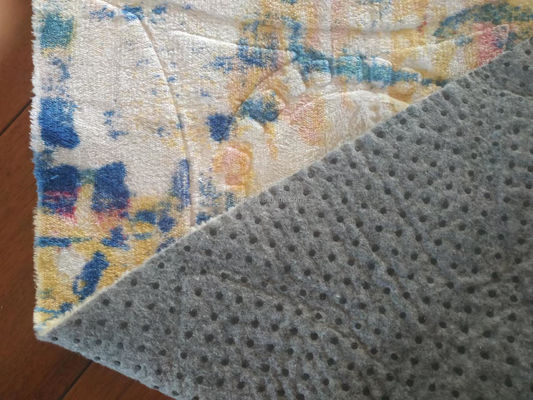

This machine can be used to print plastic dots and various flower-shaped dots on cotton, chemical fiber, blended, non-woven fabrics and other fabrics. It is used for the production of knitted dot plastic glove fabrics, decorative cloths and carpets, etc., which has a non-slip effect.
