Automatic Non Woven Fabric Coating Machine for Carpet Backing and Printing Round Dots

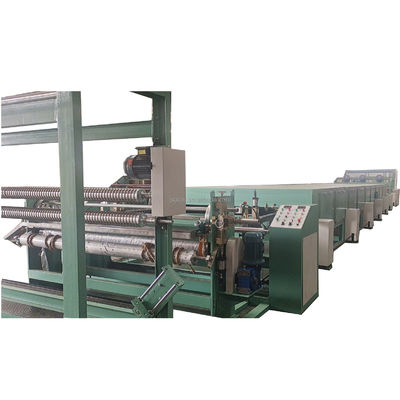

Large Image : Automatic Non Woven Fabric Coating Machine for Carpet Backing and Printing Round Dots

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	GAOQI
Certification:	ce

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$52,000.00/sets >=1 sets
Packaging Details:	High quality double paste dot textile coating machine for interlining <br>standard export container: inner packing type: film <br>external packing type: wooden case
Supply Ability:	30 Set/Sets per Month dot coating machine

Contact Now

Automatic Non Woven Fabric Coating Machine for Carpet Backing and Printing Round Dots

Description

Applicable Industries:	Manufacturing Plant	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2022
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Automatic Grade:	Automatic
Voltage:	380V, 50Hz, Three-phase	Power:	120000 W
Dimension(LWH):	20150mm2740mm2080mm	Weight:	15000 KG
Warranty:	1 Year	Key Selling Points:	High-accuracy
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Application:	Non-slip Seat Cover,production Of Knitted And Dotted Gloves,etc
COLOR:	Customized	Dimensions(mm):	20150mm2740mm2080mm
Function:	Print Plastic Round Dots On Fabrics	After Warranty Service:	Online Support
Port:	Shanghai

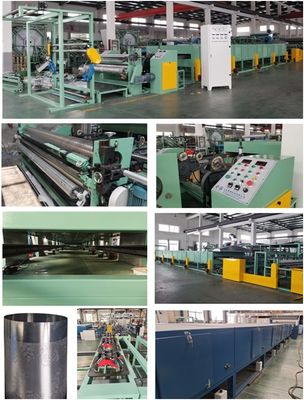

OUR FACTORY

PRODUCT PARAMENTERS

Technical working Process:
Anti-deviation feeding cloth-screen dot printing-automatic far infrared needle loading-needle plate stenter electric heating drying-automatic needle removal-air cooling-counting-rewinding.

Brand	GAOQI
Power	380V, 50Hz, three-phase
Oven	12M-25M
Process speed	5-45m/min
Power	120KW
Temperature control	PID automatic
size	23600 2500 2100mm
Cooling mode	air cooling
Dispensing method	round dot plastic

Application:
This machine can be used to print plastic dots and various flower-shaped dots on cotton, chemical fiber, blended, non-woven fabrics and other fabrics. It is used for the production of knitted dot plastic glove fabrics, decorative cloths and carpets, etc., which has a non-slip effect.
