Product Description

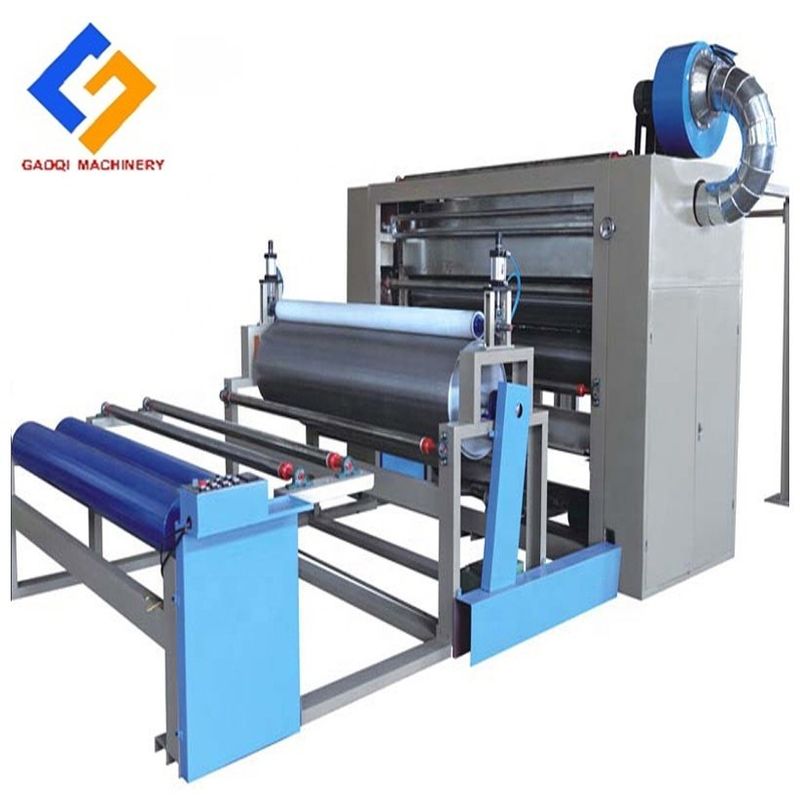

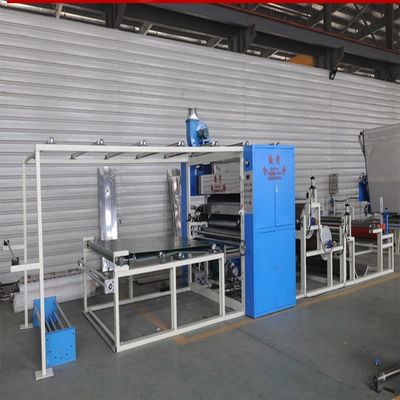

flame laminating machine for foam with fabric
Flame lamination is a process that adheres material to one side of the fire retardant foam or EVA.
Pass the foam or EVA over a flame produced by a flare roller, creating a thin layer of sticky stuff on the surface of one side of the foam or EVA.
Then, quickly press the material against the sticky stuff of the foam or EVA.
Features:
Application:
To laminate foam/sponge with woven or nowoven fabrics, knitted, natural or synthetic fabrics, velvet, plush, polar fleece, corduroy, leather, synthetic leather, PVC, etc.
Automotive industry (car interiors, car seats)
Furniture industry (office chairs, sofas, baby items, stuffing)
Footwear industry
Garment industry
Household cleaning products -PU-fiber scourers
Heat insulation - sound absorption, etc.
Features:
1. Gas Type: Natural Gas or Liquefied Gas.
2. The water cooling system well enhances the lamination effect.
3. The air exhaust diaphragm will exhaust the odor.
4. Fabric spreading device is installed to make the laminated material smooth and neat.
5. The strength of the bonding depends on the material and the foam or EVA selected and the processing conditions.
6. With high integrity and long term adhesive durability, the laminated materials touch well and is dry washable.
7. Edge tracker, tensionless fabric unwinding device, stamping device and other auxiliary equipment can be optionally installed.
Main technical parameters:
| Heat source | Natural Gas or Liquefied Gas |
| Width of roll | 2100mm |
| Width of finished product | 1900mm |
| Mechanical speed | 20 - 45m / min |
| Installed capacity | About 10 KW |
| Dimensions (L*W*H) | 13000 x 2500 x 2200mm |
