15000 KG Automatic 3 in 1 German Style Flame Laminating Machine for Car Seat

Name: 15000 KG Automatic 3 in 1 German Style Flame Laminating Machine for Car Seat
Brand: Jiangsu Gaoqi Machinery Co., Ltd
Price: Negotiable USD
Availability: InStock

All Products

Automatic Laminating Machine
(229)

Dot Coating Machine
(82)

Die Cutting Machine
(29)

Automatic Bronzing Machine
(18)

Carpet Cutting Embossing Machine
(6)

Fabric Inspection Machine
(11)

Fabric Heat Jointing Machine
(2)

Fabric Winding Machine
(7)

Leather Sponge Deodorant Machine
(1)

Certification

I'm Online Chat Now

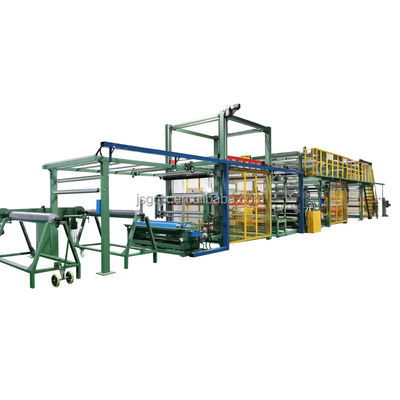

15000 KG Automatic 3 in 1 German Style Flame Laminating Machine for Car Seat

Large Image : 15000 KG Automatic 3 in 1 German Style Flame Laminating Machine for Car Seat

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	GAOQI
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$128,000.00/sets >=1 sets

Contact Now

15000 KG Automatic 3 in 1 German Style Flame Laminating Machine for Car Seat

Description

Type:	Laminating Machine	Applicable Industries:	Manufacturing Plant
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Condition:	New
Application:	Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles	Packaging Type:	Film
Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380v
Dimension(LWH):	35800mmx4950mmx5000mm	Weight:	15000 KG
Warranty:	1 Year	Key Selling Points:	High-accuracy
Product Name:	German Style Flame Laminating Machine	Key Words 1:	Foam Flame Laminating Machine
Color:	Customrized	Advantage:	Auto Flame Lamination Machine
Suitable Laminating Materials:	Fireproof Fabric	Delivery Time:	45days
Package:	Wooden Case/Film	Payment Terms:	T/T 30% Deposit.balance
After-sales Service Provided 1:	On Line

OUR FACTORY

SOLUTION:
We provide customized machines with many years of experience

PRODUCT PARAMENTERS

Product
Flame lamination is a process that adheres material to one side of the fire retardant foam or EVA.
Pass the foam or EVA over a flame produced by a flare roller, creating a thin layer of sticky stuff on the surface of one side of the foam or EVA.Then, quickly press the material against the sticky stuff of the foam or EVA.

Features:

1. Gas Type: Natural Gas or Liquefied Gas.
2. The water cooling system well enhances the lamination effect.
3. The air exhaust diaphragm will exhaust the odor.
4. Fabric spreading device is installed to make the laminated material smooth and neat.
5. The strength of the bonding depends on the material and the foam or EVA selected and the processing conditions.
6. With high integrity and long term adhesive durability, the laminated materials touch well and is dry washable.
7. Edge tracker, tensionless fabric unwinding device, stamping device and other auxiliary equipment can be optionally installed.

SPECIFICATION:	GQ2000-FL2B-GE
MAX PRODUCTION WIDTH:	2000mm
ROLLER SURFACE WIDTH:	2200mm
VOLTAGE:	440V 60HZ 3P
WORKING SPEED:	10-60M/MIN
HEATING SOURCE	GAS
COMBUSTION AMOUNT:	0.003-0.008KG/㎡
OPERATION CONTROL MODE:	PLC touch screen control
DIMENSION(LXWXH)	35800mmx4950mmx5000mm

Application:
To laminate foam/sponge with woven or nowoven fabrics, knitted, natural or synthetic fabrics, velvet, plush, polar fleece,corduroy, leather, synthetic leather, PVC, etc.
Automotive industry (car interiors, car seats)
Furniture industry (office chairs, sofas, baby items, stuffing)
Footwear industry
Garment industry
Household cleaning products -PU-fiber scourers
Heat insulation - sound absorption, etc.
