GAOQI 3600 Wide Fabric PUR Hot Melt Glue Laminating Machine with 180 kg/h Melt Speed

Name: GAOQI 3600 Wide Fabric PUR Hot Melt Glue Laminating Machine with 180 kg/h Melt Speed
Brand: Jiangsu Gaoqi Machinery Co., Ltd
Price: Negotiable USD
Availability: InStock

All Products

Automatic Laminating Machine
(229)

Dot Coating Machine
(82)

Die Cutting Machine
(29)

Automatic Bronzing Machine
(18)

Carpet Cutting Embossing Machine
(6)

Fabric Inspection Machine
(11)

Fabric Heat Jointing Machine
(2)

Fabric Winding Machine
(7)

Leather Sponge Deodorant Machine
(1)

Certification

I'm Online Chat Now

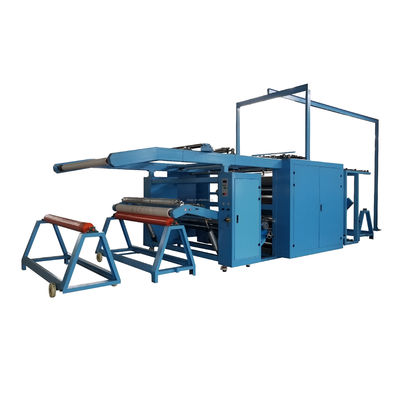

GAOQI 3600 Wide Fabric PUR Hot Melt Glue Laminating Machine with 180 kg/h Melt Speed

Large Image : GAOQI 3600 Wide Fabric PUR Hot Melt Glue Laminating Machine with 180 kg/h Melt Speed

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	GAOQI
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$80,000.00/sets >=1 sets

Contact Now

GAOQI 3600 Wide Fabric PUR Hot Melt Glue Laminating Machine with 180 kg/h Melt Speed

Description

Type:	Laminating Machine	Applicable Industries:	Manufacturing Plant
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Condition:	New
Application:	APPAREL, Beverage, Chemical, Commodity, Textiles	Packaging Type:	Film
Packaging Material:	Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380V/50HZ/Customized
Dimension(LWH):	11000mm5000mm3200mm	Weight:	15000 KG
Warranty:	1 Year	Key Selling Points:	Easy To Operate
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Color:	Customrized
Melt Speed:	180 Kg/h	Working Temperature:	110 Degree Centigrade
Max Laminating Width:	3600mm/customized	Base Material:	Textiles, Non-woven Fabrics, TPU, PE, PTEE ,artificial Leather, Etc
Name:	Pur Laminating Machine	After Warranty Service:	Online Support
Keyword:	Hot Melt Glue Laminating Machine

SOLUTION:
We provide customized machines with many years of experience, we are the first domestic PUR manufacturer with PUR R&D history of 20 years in wide width PUR hot melt glue laminating machine which covered 95% domestic market (Haining,Keqiao etc).

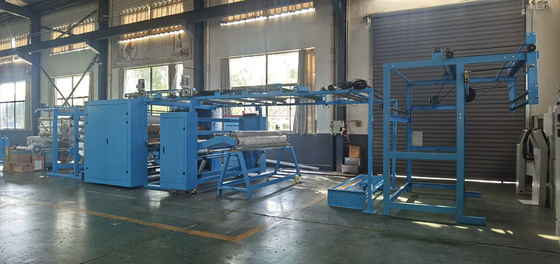

OUR FACTORY

PRODUCT PARAMENTERS

Product
high quality hot melt machine for PUR fabric making

Features:
1. Full environmental-friendly hot melt adhesive giving the laminated products a huge range of high-demanding application.
2. The hot melt adhesive also provides advantages of high flexibility, thermal stability, anti-cracking and long using life.
3. Intricate programmed PLC controlling and operation system makes the machine running automatically and user friendly.
4. Famous brand precise motors and inverters installed for stable mechanical performance.
6. Non-tension unwinding unit makes laminated materials smooth and flat, guaranteeing good bonding effect.
7. Fabric and film stenters are equipped to ensure materials feed smoothly and flatly.
8. For 4-way stretch fabrics, special fabric transmission belt installed on the laminating machine.
9. 55-gallon automatic platen melting and feeding tank and conduction oil circular heater are equipped.
10. Low maintenance cost and less running noise.

PUR Hot Melt Adhesive Advantages:
1. Solvent free, no volatile organic compounds (VOC) during use, no harm to the environment and workers.
2. Reacting with moisture makes PUR glue bond firmly and high-temperature resist.
3. Washable in hot water in both commercial or home laundry.
4. Stretchy, allow a flexible fit.
5. Resist abrasion, fire retardant, anti-microbial.
6. Long service life.
