Double Color Embossing Foiling Laminator With 8000 KG Lamination Capacity

Large Image : Double Color Embossing Foiling Laminator With 8000 KG Lamination Capacity

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	GAOQI
Certification:	CE
Model Number:	GQ-SSTJ2000

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$98,000.00/sets >=1 sets
Packaging Details:	inner Package : Protective Film <br>External Package: Standard Export Container
Supply Ability:	30 Set/Sets per Month

Contact Now

Double Color Embossing Foiling Laminator With 8000 KG Lamination Capacity

Description

Type:	Heat Press Machine	Applicable Industries:	Manufacturing Plant
Condition:	New	Plate Type:	GRAVURE
Usage:	Garment, Label/Cloths/Fabric/Leather/t-shirt Printer	Automatic Grade:	Automatic
Color & Page:	Multicolor	Voltage:	380V/220V/customized
Dimensions(LWH):	1500030004300 Mm	Weight:	8000 KG
Warranty:	1 Year	Key Selling Points:	High-accuracy
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1 Year	Core Components:	Motor, Pressure Vessel, Pump, Other, PLC, Gear, Bearing, Gearbox, Engine
Platen Size:	50*60cm	Driven Type:	Hydraulic
Product Name:	Hot Stamping Machine	After Warranty Service:	Online Support
Local Service Location:	None	Showroom Location:	None
After-sales Service Provided:	Online Support	Marketing Type:	New Product 2022
Keywords:	HOT STAMPING MACHINE	Delivery Time:	45days

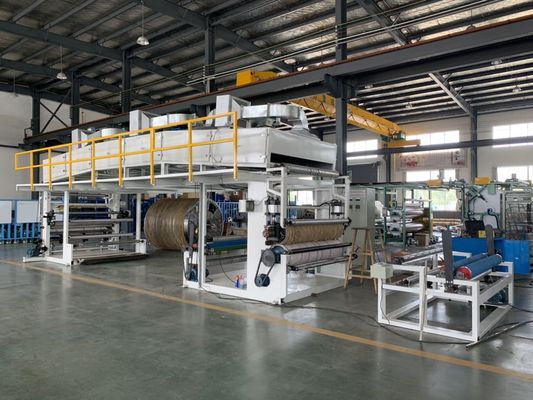

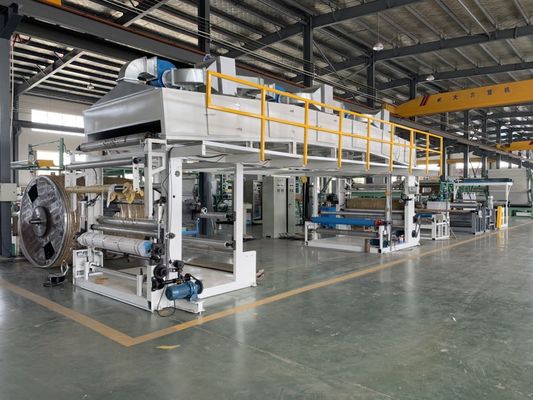

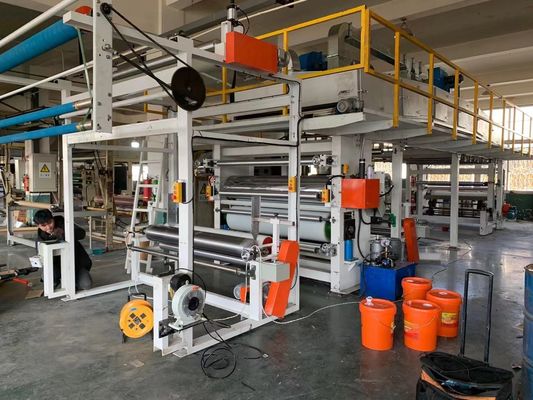

OUR FACTORY

PRODUCT PARAMENTERS

Product
Doulbe color Bronzing machine

Features:
1. Left and right movable blade is equipped to effectively protect the blade as well as the engraved roller, also to guarantee
great bronzing/stamping effect.
2. High efficient heating tunnel with air circulating makes sure the heating even, fast speed, energy saving, and great effect.
3. The unwinding device with constant tension control system ensures the material in a tight state. Equipped with manual
adjustment device to keep the material run in the correct way.
4. Using oil heated silicone roller with large contact surface and hydraulic press units, conducting a more stable and consistent
pressure on material to ensure the bronzing effect.
5. Equipped with winding device both in front of and at the back of the machine, making a high applicable, easy and compact
winding.
6. User friendly operation system is designed to make it easy to get in.

Two Bronzing Technology

Special Bronzing:
Cloth feeding----Gluing of printing roller----Pre-drying----Hot pressing and laminating of bronzing film----Cloth and film separation----The finished products rewinding

General Bronzing:
Bronzing film feeding----Gluing of printing roller----drying in the bridge type oven----cloth feeding, heat pressing and laminating----The finished products rewinding----thermal room----Cloth and film separator
