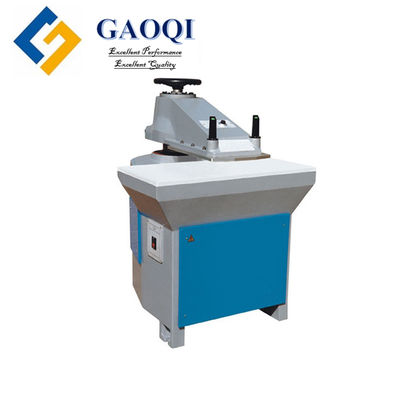

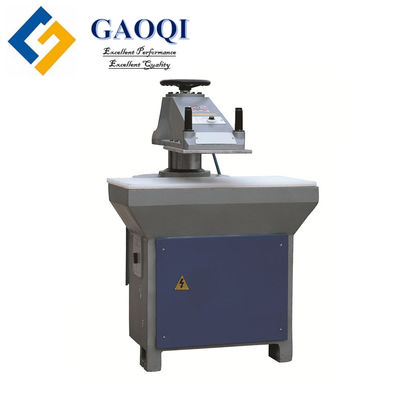

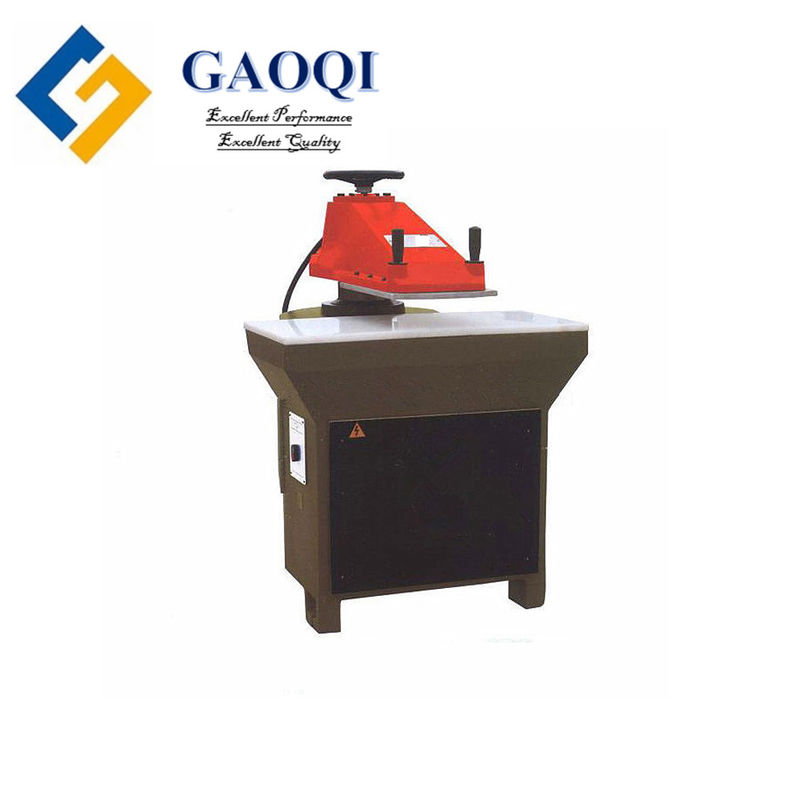

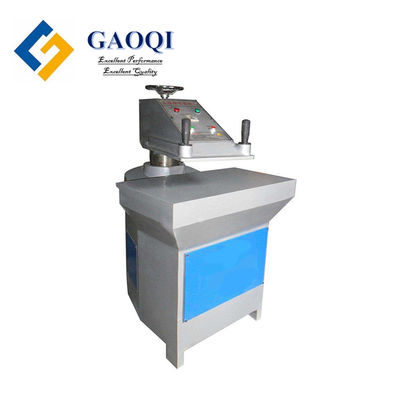

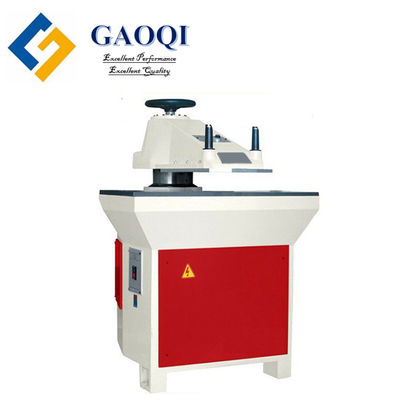

Hydraulic Die Cutting Machine Swing Arm Die Press Machine / Cutting Press

Hydraulic Die Cutting Machine Swing Arm Die Press Machine / Cutting Press
Hydraulic Die Cutting Machine Swing Arm Die Press Machine / Cutting Press Hydraulic Die Cutting Machine Swing Arm Die Press Machine / Cutting Press Hydraulic Die Cutting Machine Swing Arm Die Press Machine / Cutting Press Hydraulic Die Cutting Machine Swing Arm Die Press Machine / Cutting Press Hydraulic Die Cutting Machine Swing Arm Die Press Machine / Cutting Press Hydraulic Die Cutting Machine Swing Arm Die Press Machine / Cutting Press

Large Image :  Hydraulic Die Cutting Machine Swing Arm Die Press Machine / Cutting Press

Product Details:
Place of Origin: Jiangsu, China
Brand Name: GAOQI
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $1,000.00 - $4,000.00/sets
Packaging Details: hydraulic swing arm die press machine/clicker cutting press<br>Inner Package: Film,<br>External Package: Wood Case
Supply Ability: 30 Set/Sets per Month cutting press
Contact Now

Hydraulic Die Cutting Machine Swing Arm Die Press Machine / Cutting Press

Description
Applicable Industries: Manufacturing Plant Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Core Components: Motor Warranty: 1 Year
Cutting Force: 10T, 12T, 16T,20T Color: Customized
Name: Cutting Press After Warranty Service: Video Technical Support, Online Support
Local Service Location: None After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
Port: Shanghai

Product Description

hydraulic swing arm die press machine/clicker cutting press



Usage and features:

1,Suitable for molding cutter die blanking, cutting operations on a variety of non metallic materials.
2,Automatic cutting stroke adjustment: change the knife mold height without any adjustment.
3,Fast speed, low energy consumption.
4,Casting body, long service life, low noise.



Technical Specifications:

Model GSB-2C/10 GSB-2C/12 GSB-2C/16 GSB-2C/200
Max. Cutting Force 100KN 120KN 160KN 200KN
Max scissoning force 0.10m/s 0.098m/s 0.10m/s 0.10m/s
Seissor speed



5-75mm



5-60mm



5-75mm



5-75mm
Stroke adjustment 60-120mm 60-120mm 65-150mm 65-150mm
Distance between upper table and lower able 400*800mm 400*900mm 450*900mm 500*1000mm
Overall dimension 850*700*1250mm 900*800*1300mm 900*900*1380mm 1000*900*1380mm
Motor power 0.75KW 1.1KW 1.1KW 1.5KW





Hydraulic Die Cutting Machine Swing Arm Die Press Machine / Cutting Press 0Hydraulic Die Cutting Machine Swing Arm Die Press Machine / Cutting Press 1

Hydraulic Die Cutting Machine Swing Arm Die Press Machine / Cutting Press 2
