Non-Woven Fabrics Mobile Hydraulic Cutting Machine with Automatic Grade and Cutting Speed

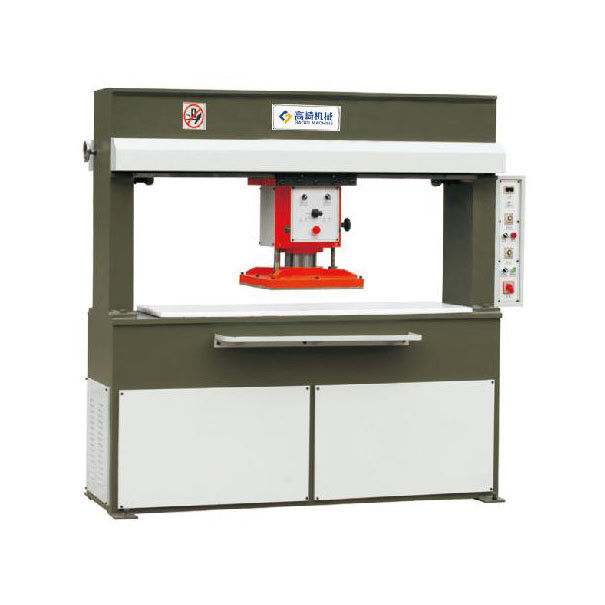

Large Image : Non-Woven Fabrics Mobile Hydraulic Cutting Machine with Automatic Grade and Cutting Speed

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	GAOQI
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$3,500.00 - $14,500.00/sets
Packaging Details:	Longmen mobile hydraulic cutting machine <br>Inner Package:Film; <br>External Package: Wood Case
Supply Ability:	30 Set/Sets per Month

Contact Now

Non-Woven Fabrics Mobile Hydraulic Cutting Machine with Automatic Grade and Cutting Speed

Description

Features:	Hydraulic	Condition:	New
Application:	Leather	Automatic Grade:	Automatic
Production Capacity:	180mm/s	Voltage:	380V/220V
Power:	2750W	Dimension(LWH):	2000mm800mm1980mm
Warranty:	1 Year	After-sales Service Provided:	Free Spare Parts, Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas
Stroke Range:	10-125mm	Working Table Size:	1760*500mm
Color:	Customized	Port:	Shanghai

Mainly used for the forming for cutting one layer or layers of leather, rubber, plastic, paper, fabric, chemical fiber, non-woven fabrics and other materials to blanking.

Features:

1.Set easily, low pressure adjustment, easy to set the cutting stroke.

2.Plate rising position arbitrarily set, lessen trave.

3.The pressing plate can be transverse, best operation line of sight.

Technical Specifications:

Model Number	XCLL2-300
Max. Cutting Force	30T
Stroke Range	10-125mm
Cutting Speed	0.18m/s
Distance between upper and lower plates	40-165mm
Cutting Area	500*500mm
*Working Table Size(LW)**	1760*500mm
Main Motor Power	2.2KW
Vice Motor Power	0.55KW
*Overall Dimension(LWH)*	2000mm800mm1980mm

Non-Woven Fabrics Mobile Hydraulic Cutting Machine with Automatic Grade and Cutting Speed 0

Non-Woven Fabrics Mobile Hydraulic Cutting Machine with Automatic Grade and Cutting Speed 2
