12m2.4m2.2mm Glue Dot Transfer Laminating Machine for Winter Clothes and Underwear

Large Image : 12m*2.4m*2.2mm Glue Dot Transfer Laminating Machine for Winter Clothes and Underwear

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	GAOQI
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$38,000.00 - $67,000.00/sets

Contact Now

12m2.4m2.2mm Glue Dot Transfer Laminating Machine for Winter Clothes and Underwear

Description

Applicable Industries:	Manufacturing Plant	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2023	Warranty Of Core Components:	1 Year
Core Components:	PLC, Motor	Condition:	New
Application:	Textiles	Automatic Grade:	Automatic
Voltage:	380V,60HZ Customized	Dimension(LWH):	12m2.4m2.2mm
Weight:	7000	Warranty:	1 Year
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Color:	CUSTOMIZED
After Warranty Service:	Online Support

Product

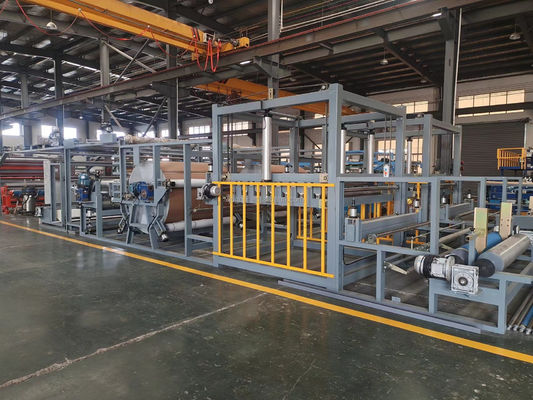

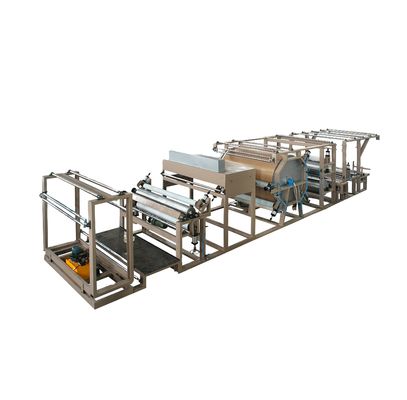

HIGH EFFICIENCY AND ENERGY SAVING DOT TRANSFER LAMINATING MACHINE
CQ-001A is mainly used for the laminating of clothing fabrics, poly spun velour, polar fleece, plush, non-woven fabric, toweling,
cotton, jean, polyester pongee, milk rayon, woolen, TC cloth, lace, leather, sponge, woven fabrics, gas-permeable membrane, PU
leather, PVC leather etc. It is widely used for wind resistant jacket, winter coats, thermal underwear, urine insulation pad,
automotive interiors, footwear, hats, luggage, decoration, home textiles, toys and other industries.

Features:
1. Functions like automatic feeding, automatic skew detection, automatic centering, automatic side spreading, automatic unfolding
and automatic waste blowing have been added on the basis of conventional dot transfer machine. It saves labor by a great
margin(2-3 persons fewer than the ordinary laminating machine).
2. The laminated materials possess features such as uniform coating, smooth lamination, no tensile deformation, no bubble, no
wrinkles, softness, extremely good gas permeability, orderly winding, being hard to peel and highly washable;
3. It can laminate a great variety of materials such as cloth/cloth and cloth/membrane and is especially suitable for the
lamination of double side or quadruple side elastic fabric;
4. Different configurations can be chosen for winding and spreading rolls according to different materials;
5. Some devices can be added or reduced according to the features of different materials;
6. The machine can be used for multi-purposes such as the lamination of solvent adhesive coating;
7. The quantity and types of adhesive can be adjusted according to the materials and actual needs;
8.The roller can either be heated by electricity, vapor or heat transfer oil;
9. The width of roller can be decided by according to the actual maximum width of the materials;
10. The operation system can be upgraded to a touch screen PLC program control.

Brand	GAOQI
Power supply	380V, 50Hz, three-phase
Running Speed	5-45m/min
Power	About 50KW
Diameter of Heating Drum	1500mm
Heating Rods in Heating Drum	30 PCS x 1.5KW
Width of Heating Drum	1800mm, 2000mm, 2200mm According to The Maximum Material
Net Weight	8500 KGS
Dimensions (LWH)	11500mm x 2500mm x 2500 mm
