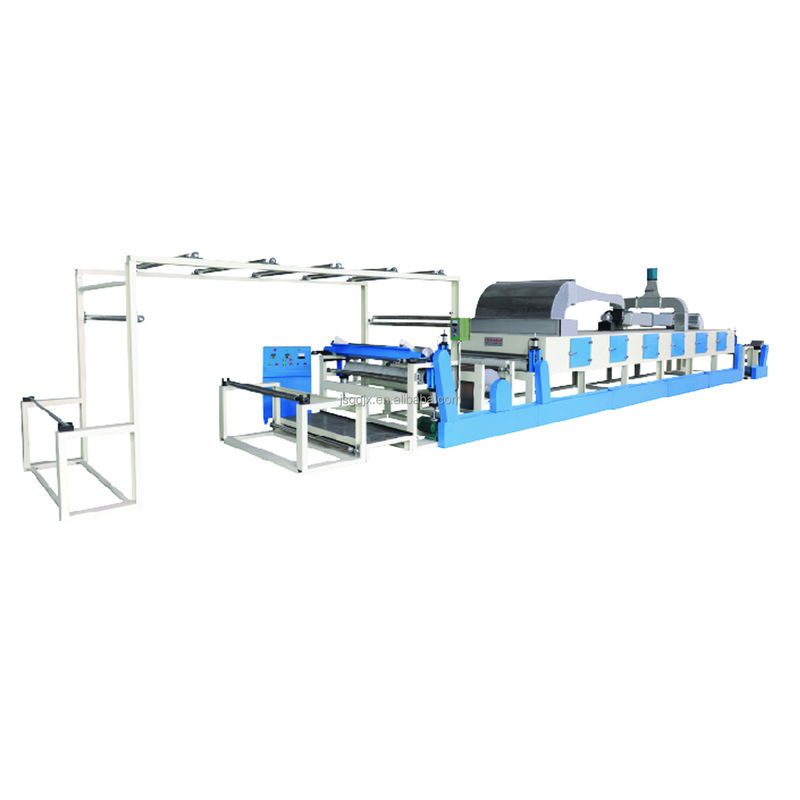

4500 Abrasive Paper Flannelette Lamination Machine Design

Mainly used for applying oil-based glue and water-based glue on the abrasive paper before they are laminated with flannelette. It can also be used for the gluing and laminating of sponges, cloth leather,release paper and so on.  It is suitable for the deep processing of abrasive paper and many other industries.

Features:

Apply scraping coating as gluing method ,adhesive is used as bonding agent  and is predry in the oven. Such process can make the laminated materials balanced, reliable and firm enough.

Uses and characters:
Apply glue type: oily glue, water-based glue

Mainly used for gluing and laminating of sand/abrasive paper and flannelette/velvet.

Main Devices:
Feeding device: The magnetic tension, pneumatic core shaft for unwinding.
Gluing: gluing device is selected according to different glue type. Oil-based glue with a blade; oily glue and water-based glue dual-use, using comma knife.
Oven:the length according to output capacity;
Heating method: electric heating tube
Transmission:Controlled by frequency control motor.
Winding: Friction plates for winding, Magnetic powder tension and pneumatic core shaft for winding (optional)
