Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results

Name: Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results
Brand: Jiangsu Gaoqi Machinery Co., Ltd
Price: Negotiable USD
Availability: InStock

All Products

Automatic Laminating Machine
(229)

Dot Coating Machine
(82)

Die Cutting Machine
(29)

Automatic Bronzing Machine
(18)

Carpet Cutting Embossing Machine
(6)

Fabric Inspection Machine
(11)

Fabric Heat Jointing Machine
(2)

Fabric Winding Machine
(7)

Leather Sponge Deodorant Machine
(1)

Certification

I'm Online Chat Now

Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results

Large Image : Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	GAOQI
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$145,000.00/sets >=1 sets

Contact Now

Active Carbon Scattering Air Conditioner Filter Laminate Equipment for Optimal Results

Description

Features:	Multi Glue And Powder Scattering Coating	Applicable Industries:	Manufacturing Plant
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2022
Warranty Of Core Components:	1 Year	Core Components:	PLC
Condition:	New	Application:	Apparel,Medical,automotive
Automatic Grade:	Automatic	Production Capacity:	5-45m/min
Voltage:	380V 50Hz 3Phase/Customized	Power:	120kw
Dimension(LWH):	13500mm3300mm3200mm	Weight:	7500
Warranty:	12 Months	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Color:	Customrized	Suitable Laminating Materials:	Non Woven Fabrics,films,Meltblown
After Warranty Service:	Video Technical Support	Function:	Automatic Powder Feeding

OUR FACTORY

PRODUCT PARAMENTERS

Product:

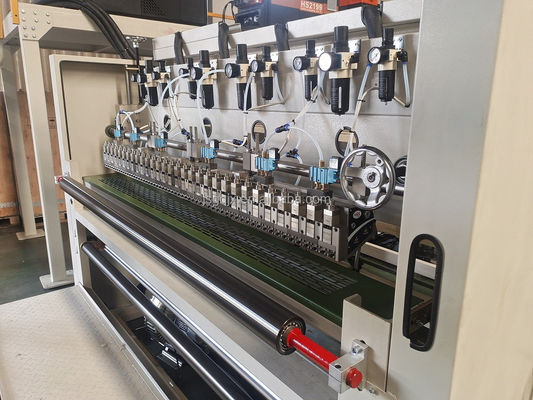

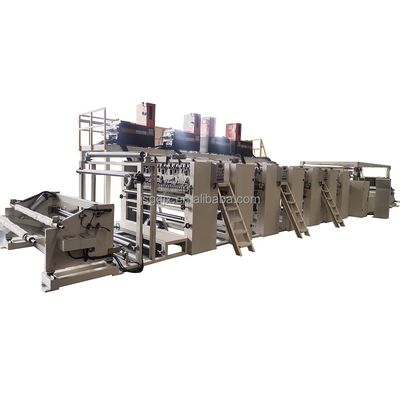

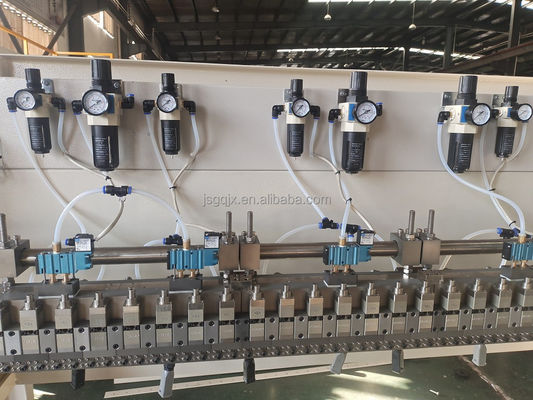

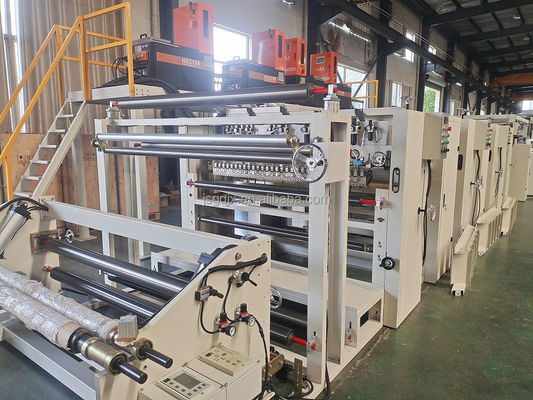

Hot Melt glue Spray and powder Scattering Coating Laminating machine

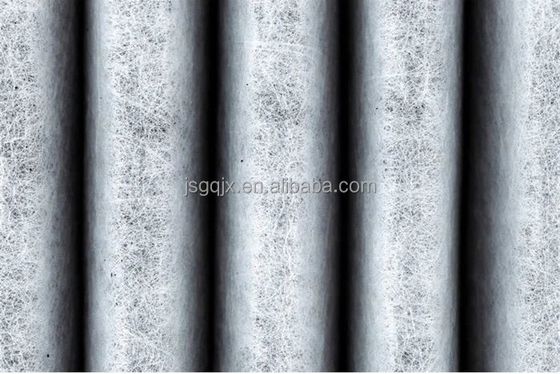

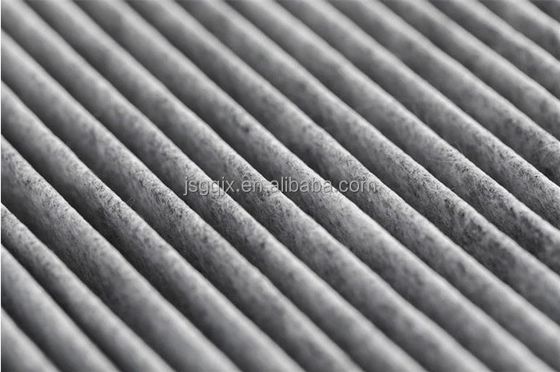

It is mainly used in the non-woven base material of air filtration equipment industry for glue spraying and active carbon powder composite process.

Using a new generation of technology,the hot-melt adhesive is sprayed on the whole surface of the substrate in a fibrous form,and the activated carbon is sprayed on the surface of the substrate sprayed with the adhesive through the powder spraying device and then it is compounded by spraying the adhesive again. The traditional processes of glue mixing,powder spreading and hot pressing after baking in a high-power oven are. The amount of glue and powder can be set according to the needs of users,and the functions of automatic feeding of activated carbon powder and automatic dust removal can be realized.

Laminate fabrics width	1600mm, customizable
Roller Width	1800mm,customizable
Production speed	0-45m/min
Voltage	380v, customizable
power	about 100kw

PUR Hot Melt Adhesive Advantages:
1. Solvent free, no volatile organic compounds (VOC) during use, no harm to the environment and workers.
2. Reacting with moisture makes PUR glue bond firmly and high-temperature resist.
3. Washable in hot water in both commercial or home laundry.
4. Stretchy, allow a flexible fit.
5. Resist abrasion, fire retardant, anti-microbial.
6. Long service life.

Features:
1. Full environmental-friendly hot melt adhesive giving the laminated products a huge range of high-demanding application.
2. The hot melt adhesive also provides advantages of high flexibility, thermal stability, anti-cracking and long using life.
3. Intricate programmed PLC controlling and operation system makes the machine running automatically and user friendly.
4. Famous brand precise motors and inverters installed for stable mechanical performance.
6. Non-tension unwinding unit makes laminated materials smooth and flat, guaranteeing good bonding effect.
7. Fabric and film stenters are equipped to ensure materials feed smoothly and flatly.
8. For 4-way stretch fabrics, special fabric transmission belt installed on the laminating machine.
9. 55-gallon automatic platen melting and feeding tank and conduction oil circular heater are equipped.
10. Low maintenance cost and less running noise.
