40kw Hot Melt Laminating Machine Perfect for Fabrics and Steam Eyemask Production

Large Image : 40kw Hot Melt Laminating Machine Perfect for Fabrics and Steam Eyemask Production

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	GAOQI
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$20,000.00/sets >=1 sets
Supply Ability:	10 Set/Sets per Month

Contact Now

40kw Hot Melt Laminating Machine Perfect for Fabrics and Steam Eyemask Production

Description

Features:	PUR Hot Melt Glue	Applicable Industries:	Manufacturing Plant
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2023
Warranty Of Core Components:	1 Year	Core Components:	PLC
Condition:	New	Application:	Apparel
Automatic Grade:	Automatic	Production Capacity:	5-45m/min
Voltage:	380V 50Hz 3Phase/Customized	Power:	40kw
Dimension(LWH):	8300mm3300mm3200mm	Weight:	1500
Warranty:	12 Months	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Color:	Customrized	Suitable Laminating Materials:	Fabrics,films, Leather, Sponge, Non-woven, Paper,etc.
After Warranty Service:	Video Technical Support	Local Service Location:	None
SPRAY METHOD::	Full Fiber Spray, Non-contact Spray	Port:	Shanghai

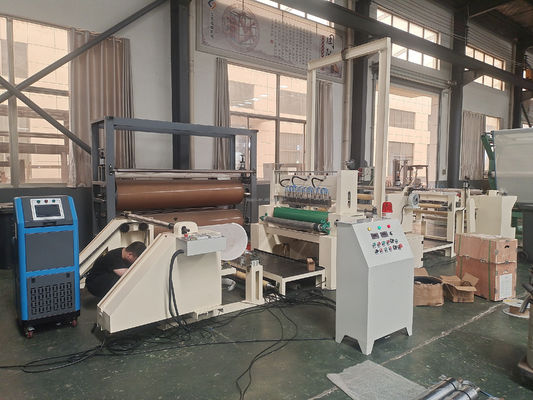

OUR FACTORY

PRODUCT PARAMENTERS

Product
1, suitable materials: non-woven, textile cloth, foam, sanitation and environmental protection non-glue powder materials
2, PLC variable frequency control spray, according to the machine operating speed intelligent adjustment of the amount of spray,spray module consists of a number of nozzles, spray width can be set as needed, can produce different widths of materials, butalso convenient for cleaning and maintenance of spray head.
3, hot melt process, replace the traditional solvent-based glue, no need to heat and dry, production speed faster and smoother.
4, unwinding equipped with magnetic powder stress control system and photoelectric correction system, to ensure accurate feeding.
5, rewinding is equipped with friction shaft center rewinding system, to ensure the perfect rewinding.
6, the output meter function, accurately record the output.
7, spray system contains air heating film, more suitable for high-temperature collosus spray. Working air pressure 5Mpa, jet pressure 1-2Mpa, spray using 5 pieces of multi-air control.
8, the cylinder by high temperature Teflon treatment, effectively prevent the carbonization of hot melt phenomenon. Double-layer heating is used to improve the melting speed and double-stage filtration after the pump before pump to ensure pure collage.
9, combined with frequency inverter technology and microelectronics technology, PLC intelligent control of the amount of spray,spray accuracy ± 1 gram.
10, main frame color: white or color selected by the customer.
