GQ Leather/Foam/Fabric SOFA Fabric Lamination Machine for in Manufacturing Plant

Large Image : GQ Leather/Foam/Fabric SOFA Fabric Lamination Machine for in Manufacturing Plant

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	GAOQI

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$12,000.00/sets >=1 sets
Supply Ability:	30 Set/Sets per Month

Contact Now

GQ Leather/Foam/Fabric SOFA Fabric Lamination Machine for in Manufacturing Plant

Description

Applicable Industries:	Manufacturing Plant	Weight (KG):	5000
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	PLC
Machine Type:	Laminating Machine	Material Capabilities:	Fabric
Condition:	New	Warranty:	1 Year
Heating Method:	Electrical Heating/Gas Heating	Name:	Water Based Glue Laminating Machine
Port:	Shanghai

Product
Another Name:vertical net belt lamination machine ; Chenille carpet lamination machine; white glue lamination machine; water-based
glue lamination machine;shoe materials lamination machine;latex lamination machine;sponge and leather lamination machine, etc

Features:
1.White latex is used as adhesive and high temp. net belt can make sure laminates into one layer.
2.The automatic rectifying of net belt , ensure the laminated products are neat and flat.
3.Utilizes synchronous control with frequency conversion of operating system.
4.According to the characteristics of different materials, part of the device can be changed to achieve the final required.
5.Special specifications can be customized.

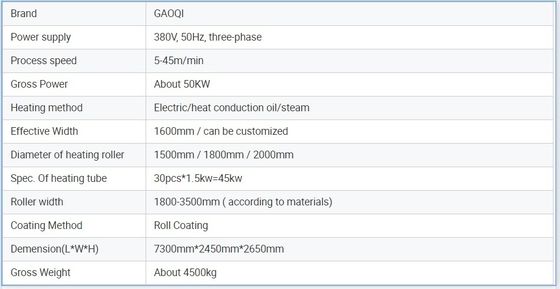

Brand	GAOQI
Power supply	380V, 50Hz, three-phase
Process speed	5-45m/min
Gross Power	About 50KW
Heating method	Electric/heat conduction oil/steam
Effective Width	1600mm / can be customized
Diameter of heating roller	1500mm / 1800mm / 2000mm
Spec. Of heating tube	30pcs*1.5kw=45kw
Roller width	1800-3500mm ( according to materials)
Coating Method	Roll Coating
Demension(LWH)	7300mm2450mm2650mm
Gross Weight	About 4500kg

Application:
Mainly used for gluing coating and laminating of coils and coils or coils and sheets .The raw materials are cashmere, polar fleece, plush, suede, sponge, fabrics, non-woven fabrics, EVA, leather ,silk wadding and so on. The finished products are widely used for garment, shoes and hats, luggage, gloves, leather, automotive interiors, toys, carpet , home textiles , etc.
