Automatic Hot Melt Glue Spray and Powder Scattering Coating Fabric Laminating Machine

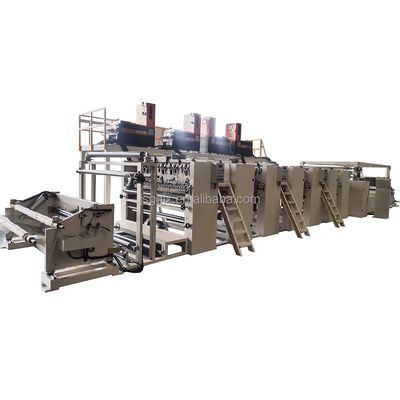

Large Image : Automatic Hot Melt Glue Spray and Powder Scattering Coating Fabric Laminating Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	GAOQI
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$66,000.00 - $118,000.00/sets
Packaging Details:	car interiors PUR hot melt laminating machine <br>Standard export container: inner packing type: fim <br> external packing type: wooden case
Supply Ability:	35 Set/Sets per Month

Contact Now

Automatic Hot Melt Glue Spray and Powder Scattering Coating Fabric Laminating Machine

Description

Features:	Multi Glue And Powder Scattering Coating	Applicable Industries:	Manufacturing Plant
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2022
Warranty Of Core Components:	1 Year	Core Components:	PLC
Condition:	New	Application:	Apparel,Medical,automotive
Automatic Grade:	Automatic	Production Capacity:	5-45m/min
Voltage:	380V 50Hz 3Phase/Customized	Power:	120kw
Dimension(LWH):	13500mm3300mm3200mm	Weight:	7500
Warranty:	12 Months	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Color:	Customrized	Suitable Laminating Materials:	Fabrics,films, Leather, Sponge, Non-woven, Paper,etc.
Temp. Control:	Max. 200 Degree Celsuis	After Warranty Service:	Video Technical Support
Local Service Location:	None	Port:	Shanghai

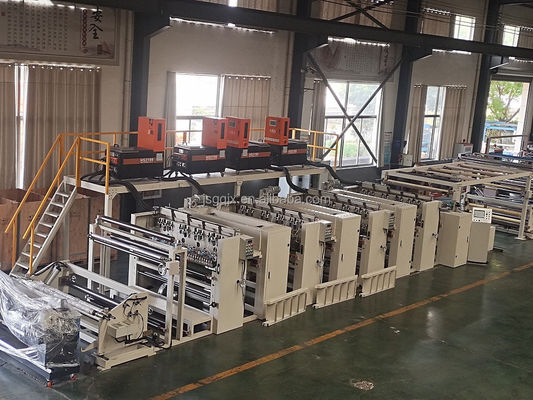

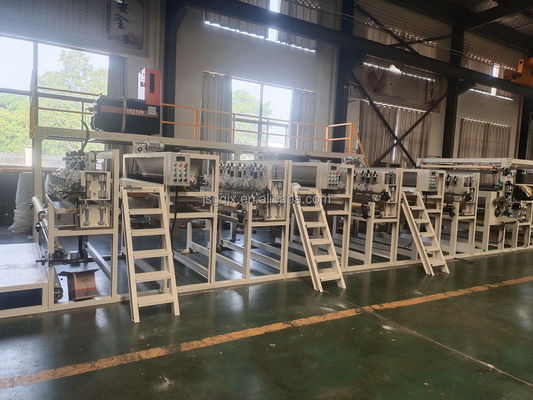

OUR FACTORY

PRODUCT PARAMENTERS

sProduct
Hot Melt glue Spray and powder Scattering Coating Laminating machine
It is mainly used in the non-woven base material of air filtration equipment industry for glue spraying and active carbon powder composite process.

Using a new generation of technology,the hot-melt adhesive is sprayed on the whole surface of the substrate in a fibrous form,and the activated carbon is sprayed on the surface of the substrate sprayed with the adhesive through the powder spraying device and then it is compounded by spraying the adhesive again. The traditional processes of glue mixing,powder spreading and hot pressing after baking in a high-power oven are. The amount of glue and powder can be set according to the needs of users,and the functions of automatic feeding of activated carbon powder and automatic dust removal can be realized.

Widely used in:

1. Textiles and Garments Industry
2. Medical Products Industry
3. Bags and Luggage Industry
4. Packaging Industry
5. Footwear Industry
6. Decoration Industry
7. Auto interior decoration Industry

Specification for hot melt glue laminating machine
Laminate fabrics width	2400mm, customizable
Roller Width	2600mm,customizable
Production speed	0-45m/min
Heating Method	heat conducting oil
Voltage	380v, customizable
power	about 55kw

PUR Hot Melt Adhesive Advantages:
1. Solvent free, no volatile organic compounds (VOC) during use, no harm to the environment and workers.
2. Reacting with moisture makes PUR glue bond firmly and high-temperature resist.
3. Washable in hot water in both commercial or home laundry.
4. Stretchy, allow a flexible fit.
5. Resist abrasion, fire retardant, anti-microbial.
6. Long service life.

Features:
1. Full environmental-friendly hot melt adhesive giving the laminated products a huge range of high-demanding application.
2. The hot melt adhesive also provides advantages of high flexibility, thermal stability, anti-cracking and long using life.
3. Intricate programmed PLC controlling and operation system makes the machine running automatically and user friendly.
4. Famous brand precise motors and inverters installed for stable mechanical performance.
6. Non-tension unwinding unit makes laminated materials smooth and flat, guaranteeing good bonding effect.
7. Fabric and film stenters are equipped to ensure materials feed smoothly and flatly.
8. For 4-way stretch fabrics, special fabric transmission belt installed on the laminating machine.
9. 55-gallon automatic platen melting and feeding tank and conduction oil circular heater are equipped.
10. Low maintenance cost and less running noise.
