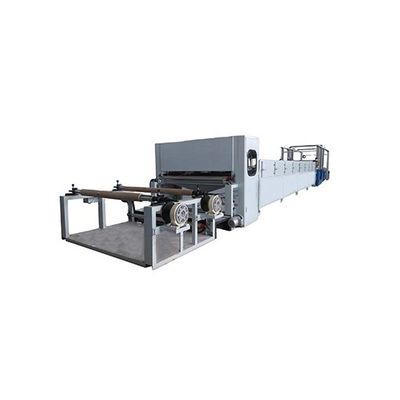

60 KW Automotive Air Conditioner Activated Carbon Air Filter Cloth Laminating Machine for Filtration

Large Image : 60 KW Automotive Air Conditioner Activated Carbon Air Filter Cloth Laminating Machine for Filtration

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	GAOQI
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$16,800.00 - $35,400.00/sets
Packaging Details:	Inner Package : Protective Film <br>External Package: Standard Export Container
Supply Ability:	30 Set/Sets per Month

Contact Now

60 KW Automotive Air Conditioner Activated Carbon Air Filter Cloth Laminating Machine for Filtration

Description

Features:	Powder Scattering	Applicable Industries:	Manufacturing Plant
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2021
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Application:	Powder Scattering
Automatic Grade:	Automatic	Production Capacity:	30 Sets/Months
Voltage:	380V/220/customized	Power:	60 KW
Weight:	5000kg	Warranty:	12 Months
After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service	Local Service Location:	None
After-sales Service Provided:	Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support	Port:	Shanghai Port

Product Description

Product	Hot Melt Powder Scattering Coating Laminating Machine
Brand	GAOQI
Power supply	380V, 50Hz, three-phase
Process speed	25-35m/min

The hot melt adhesive powder is installed in the hopper, the powder is filled in the hole of the engraving roller by the blade
until the hole is filled and the engraving roller is heated to make the powder melt and bond into a mass form.
After heating the base cloth through the engraving roller, the powder dot is bonded to the base cloth because of the heat
transfer. In this way, the powder dots are the same size, and arranged according to the pattern of the engraving roller, the
powder dots are even and neat, and have better bonding effect.

Features:
1. The machine is mainly made up of base material feeding device, powder transfer device, heating & melting tunnel, cooling device, guiding device, rewinding device and electric circuit control part, etc.
2. With compact structure and high degree of automation, it is suitable for powder transferring and materials laminating and widely used in industries, such as garment industry, shoemaking industry, interior decoration industry and so on.
3. Compact structure, easy operation, reliable function.
4. Hot melt powder transfer coating machine transfers the powder to coat smooth and frugally
5. Advanced synchronization and synchronous unwinding magnetic powder brake control technology are adopted to ensure synchronous operation for the whole machine.

Applications:
This machine adopts powder dot transfer and coating method to uniformly transfer the hot melt powder onto the substrate. It is suitable for powder-dot coating of pure cotton, poly cotton or other blend fabric about 50-135 g/m2, also it can produce low pressure polythene powder-dot interlining cloth, polyamide (nylon PA) powder-dot interlining cloth, polyester powder-dot interlining cloth, the coating of powder-dot interlining cloth is coated even, also it can fit cotton, leather or fiber to produce all kinds of garment.

Packing & Delivery

Notice before purchasing duster:

A. Please advise what kind of materials need to be dusted, such as non-woven fabric, felt, composite material, fabric, leather, etc

B. Please advise the thickness (gram weight), width and dusting effect of the material.

C. Please advise the effect configuration, such as automatic, semi-automatic, volume to volume, volume to match, etc

D. Please advise the industry scope of the materials to be dusted
