60 KW Garment Interlining Dot Coating Machine for 30 Sets/Months Production

Product Description

garment interlining dot coating machine

The hot melt adhesive powder is installed in the hopper, the powder is filled in the hole of the engraving roller by the blade until the hole is filled and the engraving roller is heated to make the powder melt and bond into a mass form.

After heating the base cloth through the engraving roller, the powder dot is bonded to the base cloth because of the heat transfer. In this way, the powder dots are the same size, and arranged according to the pattern of the engraving roller, the powder dots are even and neat, and have better bonding effect.

Applications:

This machine adopts powder dot transfer and coating method to uniformly transfer the hot melt powder onto the substrate. It is suitable for powder-dot coating of pure cotton, poly cotton or other blend fabric about 50-135 g/m², also it can produce low pressure polythene powder-dot interlining cloth, polyamide (nylon PA) powder-dot interlining cloth, polyester powder-dot interlining cloth, the coating of powder-dot interlining cloth is coated even, also it can fit cotton, leather or fiber to produce all kinds of garment.

Features:

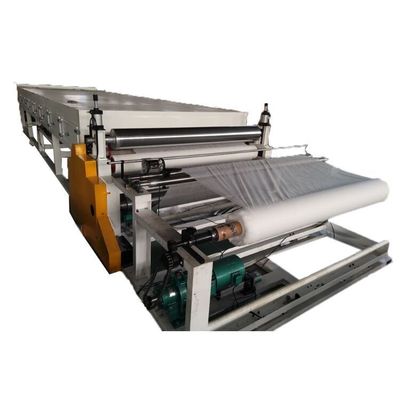

1. The machine is mainly made up of base material feeding device, powder transfer device, heating & melting tunnel, cooling device, guiding device, rewinding device and electric circuit control part, etc.

2. With compact structure and high degree of automation, it is suitable for powder transferring and materials laminating and widely used in industries, such as garment industry, shoemaking industry, interior decoration industry and so on.

3. Compact structure, easy operation, reliable function.

4. Hot melt powder transfer coating machine transfers the powder to coat smooth and frugally

5. Advanced synchronization and synchronous unwinding magnetic powder brake control technology are adopted to ensure synchronous operation for the whole machine.
