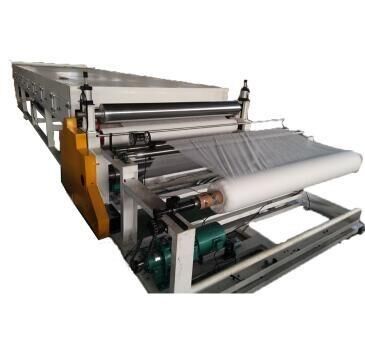

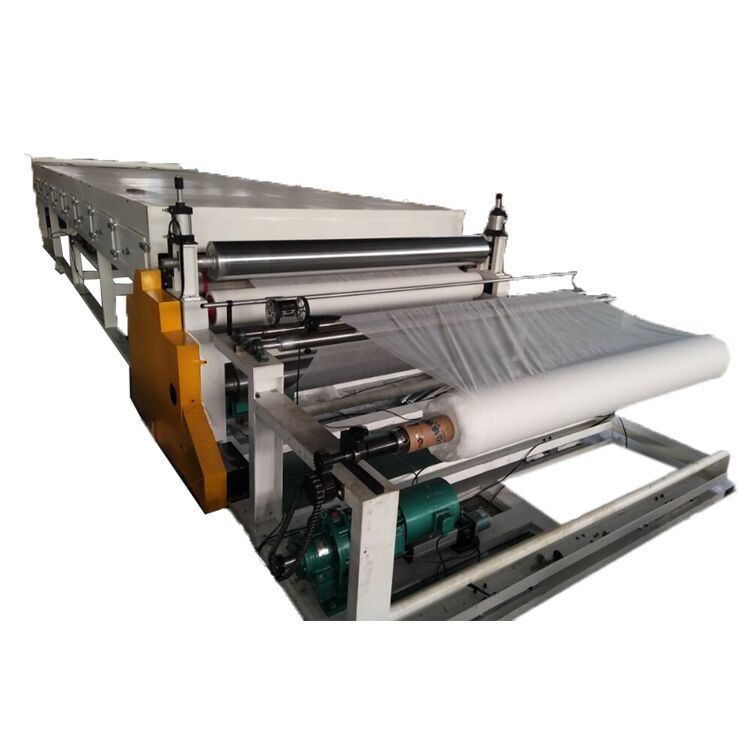

Customizable Powder Scattering Coating Machine for Hot Melt Adhesive Application

Large Image : Customizable Powder Scattering Coating Machine for Hot Melt Adhesive Application

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	GAOQI
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$18,800.00 - $35,400.00/sets
Supply Ability:	30 Set/Sets per Month Activated Carbon Powder Coating Scattering Machine for AirFilter

Contact Now

Customizable Powder Scattering Coating Machine for Hot Melt Adhesive Application

Description

Features:	Powder Scattering	Applicable Industries:	Manufacturing Plant
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	Engine, Motor, Pump
Condition:	New	Application:	Powder Scattering
Automatic Grade:	Automatic	Production Capacity:	30 Sets/Months
Voltage:	380V/220/customized	Power:	60 KW
Weight:	5000	Warranty:	12 Months
Local Service Location:	None	After-sales Service Provided:	Video Technical Support
Port:	Shanghai,China

The hot melt adhesive powder is installed in the hopper, the powder is filled in the hole of the engraving roller by the blade
until the hole is filled and the engraving roller is heated to make the powder melt and bond into a mass form.
After heating the base cloth through the engraving roller, the powder dot is bonded to the base cloth because of the heat
transfer. In this way, the powder dots are the same size, and arranged according to the pattern of the engraving roller, the
powder dots are even and neat, and have better bonding effect.

Features:

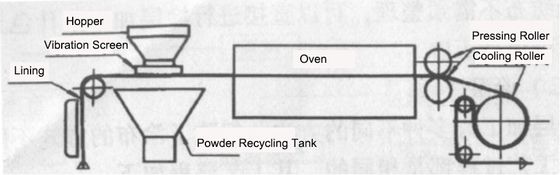

1. The machine is mainly made up of base material feeding device, powder transfer device, heating & melting tunnel, cooling device, guiding device, rewinding device and electric circuit control part, etc.
2. With compact structure and high degree of automation, it is suitable for powder transferring and materials laminating and widely used in industries, such as garment industry, shoemaking industry, interior decoration industry and so on.
3. Compact structure, easy operation, reliable function.
4. Hot melt powder transfer coating machine transfers the powder to coat smooth and frugally
5. Advanced synchronization and synchronous unwinding magnetic powder brake control technology are adopted to ensure synchronous operation for the whole machine.
