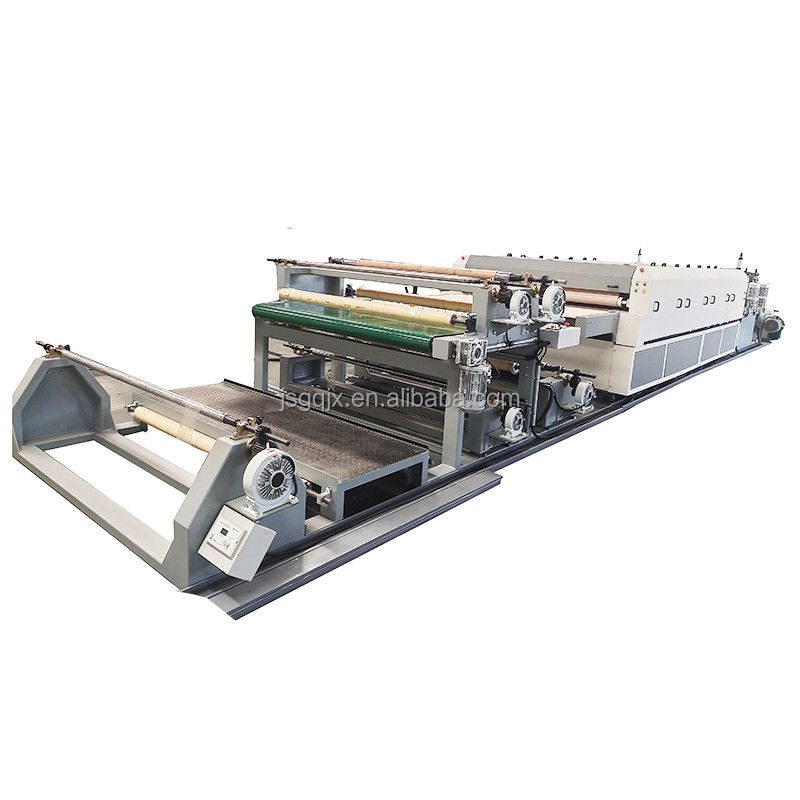

Electric Driven Aluminum Honeycomb Panel Composite Machine for Fabric Manufacturing Plant

Large Image : Electric Driven Aluminum Honeycomb Panel Composite Machine for Fabric Manufacturing Plant

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	GAOQI
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$97,000.00/sets >=1 sets
Supply Ability:	30 Set/Sets per Month

Contact Now

Electric Driven Aluminum Honeycomb Panel Composite Machine for Fabric Manufacturing Plant

Description

Type:	Laminating Machine	Applicable Industries:	Manufacturing Plant
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Condition:	New
Application:	APPAREL, Textiles	Packaging Type:	Film
Packaging Material:	FILM	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380V/50HZ/3P
Weight:	5000 KG	Warranty:	1 Year
Key Selling Points:	High-accuracy, High-accuracy	Product Name:	Double Belt Flatbed Laminating Machine
Length Of Cooling Zone:	1200mm	MAXeffective Composite Width::	500mm-3000mm
Marketing Type:	New Product 2022

Application:

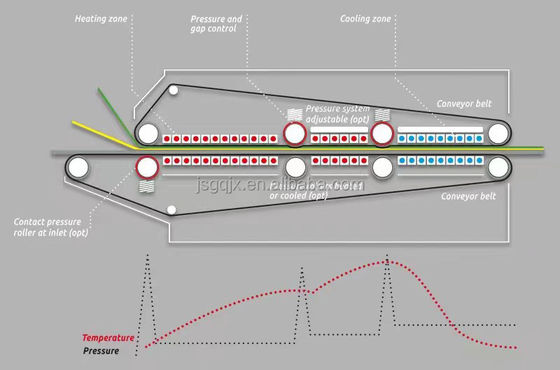

The new material double belt flatbed laminating machine is mainly suitable for: Industrial textiles (covered textile composites) Automobile industry (PU-foam composite sensitive materials attached film) Composite materials (honeycomb multi-layer composite fibers) Filter material (Activated carbon filter device Non-woven material processing ) . The new material laminating machine mainly transfers the temperature and pressure through two upper and lower conveyor belts, and heat-compresses and combines two or more materials into one. The machine integrates the contact heating and cooling system. The composite material is uniformly heated and the material is cooled before it is pressed away from the upper and lower belts. Depending on the length of the heating zone, the material will be perfectly affixed with a good bond, with uniform gaps and precise spacing adjustments to ensure that the surface is flat and wrinkle free.

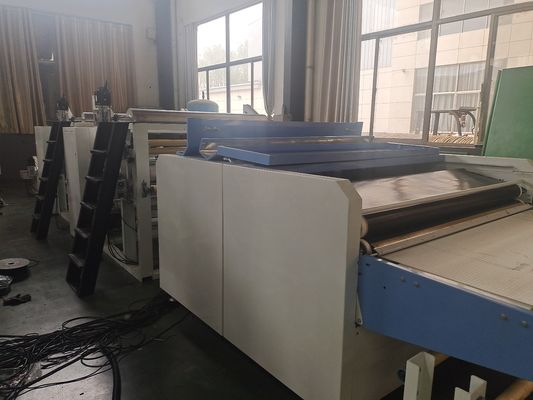

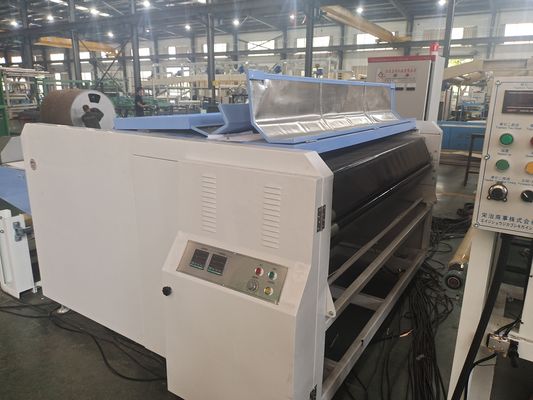

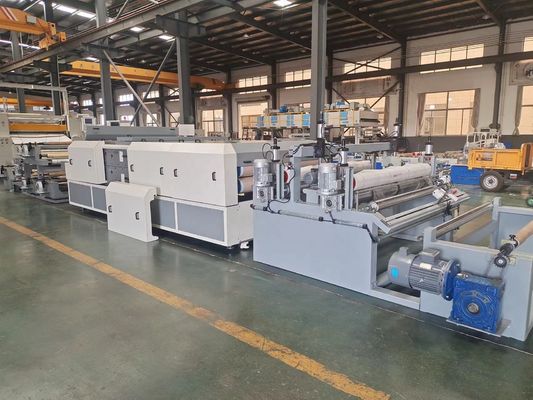

OUR FACTORY

PRODUCT PARAMENTERS

Product
Automotive Interior Material Bag Leather Double Belt Flatbed Laminating Machine Double Belt Lamination Padding Compound Machine

Features:
1. The flat-bed conveying design can convey soft coils or hard plates. From soft foaming materials and textiles to hard carbon steel plates can be processed by this system.

2. The temperature zone thermal control is distributed in the upper end, lower end,middle section and edge area of the conveying channel. The temperature of each temperature zone can be set dependently, which provides a perfect solution for different heating temperatures on both sides of the material.

3. Both roll and sheet can be processed, and the combination of sheet + roll + sheet can also be processed.

4. The conveying system does not produce tension on the material during the whole process, and provides an ideal conveying method for unidirectional materials (non-weft cloth), jacquard fabrics, very soft non-woven fabrics and other loose structure products.

5. Pressure can act on the material during the heating and cooling process, and the material can be accurately compressed to a specific thickness and shaped as needed.

6.Multi-layer materials can be completed in one step.

7. It can be fed from light and thin materials of a few microns to thick materials of 150mm thickness.

8. The roller pressure system can provide additional pressure, and a single set of cargo can be
designed with multiple pressure systems as required.

9. The working speed of the equipment can be selected according to the characteristics of the material.

10. The upper and lower conveying devices can output zero pressure when conveying materials, and
can output strong pressure.

11. The composite equipment can be integrated into a large number of auxiliary equipment to form a
complete production line, and can also be used as an independent equipment.
