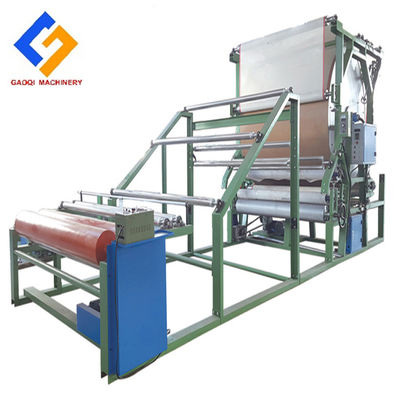

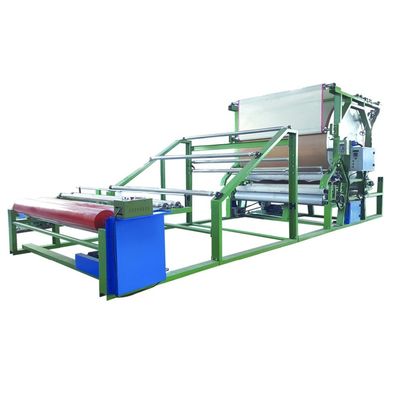

Horizontal Net Belt Laminating Machine for Garments Yancheng CUSTOMIZED Voltage 380V

Large Image : Horizontal Net Belt Laminating Machine for Garments Yancheng CUSTOMIZED Voltage 380V

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	GAOQI
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$10,800.00 - $25,486.00/sets
Packaging Details:	Carpet and Sponge laminating machine <br>standard export container: inner packing type: film <br>external packing type: wooden case
Supply Ability:	30 Set/Sets per Month

Contact Now

Horizontal Net Belt Laminating Machine for Garments Yancheng CUSTOMIZED Voltage 380V

Description

Features:	Carpet And Sponge	Applicable Industries:	Manufacturing Plant
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Condition:	New	Application:	Textiles
Automatic Grade:	Automatic	Production Capacity:	1-45m/min
Voltage:	380V,60HZ Customized	Power:	60kw
Dimension(LWH):	800024502650mm	Weight:	4500
Warranty:	1 Year	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Color:	CUSTOMIZED	After Warranty Service:	Video Technical Support
Port:	Shanghai

Product
Another Name:vertical net belt lamination machine ; Chenille carpet lamination machine; white glue lamination machine; water-based
glue lamination machine;shoe materials lamination machine;latex lamination machine;sponge and leather lamination machine, etc

Features:
1.White latex is used as adhesive and high temp. net belt can make sure laminates into one layer.
2.The automatic rectifying of net belt , ensure the laminated products are neat and flat.
3.Utilizes synchronous control with frequency conversion of operating system.
4.According to the characteristics of different materials, part of the device can be changed to achieve the final required.
5.Special specifications can be customized.

Brand	GAOQI
Power supply	380V, 50Hz, three-phase
Process speed	5-45m/min
Gross Power	About 50KW
Heating method	Electric/heat conduction oil/steam
Effective Width	1600mm / can be customized
Diameter of heating roller	1500mm / 1800mm / 2000mm
Spec. Of heating tube	30pcs*1.5kw=45kw
Roller width	1800-3500mm ( according to materials)
Coating Method	Roll Coating
Demension(LWH)	7300mm2450mm2650mm
Gross Weight	About 4500kg

Application:
Mainly used for gluing coating and laminating of coils and coils or coils and sheets .The raw materials are cashmere, polar fleece, plush, suede, sponge, fabrics, non-woven fabrics, EVA, leather ,silk wadding and so on. The finished products are widely used for garment, shoes and hats, luggage, gloves, leather, automotive interiors, toys, carpet , home textiles , etc.
