4500kg Automatic Grade Jute Fabric Non Woven Bonding Machine for Sofa Fabric Lamination

Name: 4500kg Automatic Grade Jute Fabric Non Woven Bonding Machine for Sofa Fabric Lamination
Brand: Jiangsu Gaoqi Machinery Co., Ltd
Price: Negotiable USD
Availability: InStock

All Products

Automatic Laminating Machine
(229)

Dot Coating Machine
(82)

Die Cutting Machine
(29)

Automatic Bronzing Machine
(18)

Carpet Cutting Embossing Machine
(6)

Fabric Inspection Machine
(11)

Fabric Heat Jointing Machine
(2)

Fabric Winding Machine
(7)

Leather Sponge Deodorant Machine
(1)

Certification

I'm Online Chat Now

4500kg Automatic Grade Jute Fabric Non Woven Bonding Machine for Sofa Fabric Lamination

Large Image : 4500kg Automatic Grade Jute Fabric Non Woven Bonding Machine for Sofa Fabric Lamination

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	GAOQI
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$8,900.00 - $17,900.00/sets
Packaging Details:	premium quality jute fabric non woven bonding machine for sofa fabric lamination <br>Inner Package: Protective Film, etc; <br>Outside Package: Standard Export Container
Supply Ability:	60 Set/Sets per Month

Contact Now

4500kg Automatic Grade Jute Fabric Non Woven Bonding Machine for Sofa Fabric Lamination

Description

Features:	Latex	Applicable Industries:	Manufacturing Plant
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Application:	Lamination, Sofa Making
Automatic Grade:	Automatic	Production Capacity:	60 Sets/Mon
Voltage:	380V/220V/customized	Power:	45KW
Dimension(LWH):	6500mm2400mm2300mm	Weight:	4500kg
Warranty:	12 Months	Heating Methods:	Electrical Heating/Gas Heating
Production Speed:	5-45m/min	After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:	None	After-sales Service Provided:	Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
Port:	Shanghai Port

Product

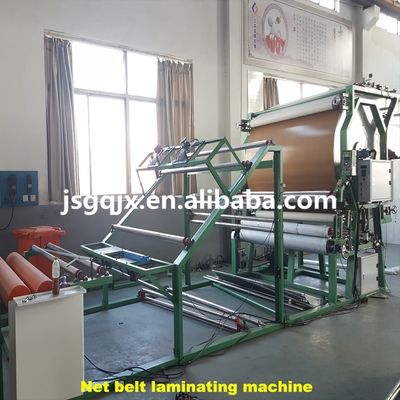

Another Name:vertical net belt lamination machine ; Chenille carpet lamination machine; white glue lamination machine; water-based
glue lamination machine;shoe materials lamination machine;latex lamination machine;sponge and leather lamination machine, etc

Features:
1.White latex is used as adhesive and high temp. net belt can make sure laminates into one layer.
2.The automatic rectifying of net belt , ensure the laminated products are neat and flat.
3.Utilizes synchronous control with frequency conversion of operating system.
4.According to the characteristics of different materials, part of the device can be changed to achieve the final required.
5.Special specifications can be customized.

Brand	GAOQI
Power supply	380V, 50Hz, three-phase
Process speed	5-45m/min
Gross Power	About 50KW
Heating method	Electric/heat conduction oil/steam
Effective Width	1600mm / can be customized
Diameter of heating roller	1500mm / 1800mm / 2000mm
Spec. Of heating tube	30pcs*1.5kw=45kw
Roller width	1800-3500mm ( according to materials)
Coating Method	Roll Coating
Demension(LWH)	7300mm2450mm2650mm
Gross Weight	About 4500kg

Application:
Mainly used for gluing coating and laminating of coils and coils or coils and sheets .The raw materials are cashmere, polar fleece, plush, suede, sponge, fabrics, non-woven fabrics, EVA, leather ,silk wadding and so on. The finished products are widely used for garment, shoes and hats, luggage, gloves, leather, automotive interiors, toys, carpet , home textiles , etc.
