Automatic Grade Oil Glue Based Laminating Machine for Wall Fabric Lamination

Name: Automatic Grade Oil Glue Based Laminating Machine for Wall Fabric Lamination
Brand: Jiangsu Gaoqi Machinery Co., Ltd
Price: Negotiable USD
Availability: InStock

All Products

Automatic Laminating Machine
(229)

Dot Coating Machine
(82)

Die Cutting Machine
(29)

Automatic Bronzing Machine
(18)

Carpet Cutting Embossing Machine
(6)

Fabric Inspection Machine
(11)

Fabric Heat Jointing Machine
(2)

Fabric Winding Machine
(7)

Leather Sponge Deodorant Machine
(1)

Certification

I'm Online Chat Now

Automatic Grade Oil Glue Based Laminating Machine for Wall Fabric Lamination

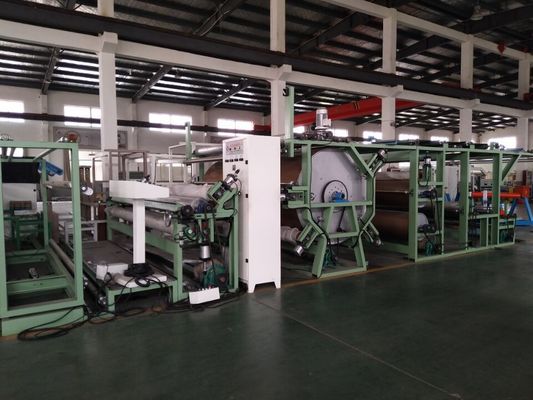

Large Image : Automatic Grade Oil Glue Based Laminating Machine for Wall Fabric Lamination

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	GAOQI
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$38,000.00/sets >=1 sets
Supply Ability:	30 Set/Sets per Month high performance glue coating laminating machine for fabric

Contact Now

Automatic Grade Oil Glue Based Laminating Machine for Wall Fabric Lamination

Description

Features:	EASY TO OPERATE	Applicable Industries:	Manufacturing Plant
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2023
Warranty Of Core Components:	1 Year	Core Components:	Motor, Gear
Condition:	New	Application:	Wall Paper,wall Cloth
Automatic Grade:	Automatic	Voltage:	380V
Power:	50	Dimension(LWH):	120024002100
Weight:	8000	Warranty:	1 Year
Heating Method:	Electrical Heating/Gas Heating	After Warranty Service:	Online Support
Oil Glue Based Laminating Machine:	1500*1800(CUSTOMIZED)	OVERALL POWER::	50KW
COATING METHOD::	Dot Transfer Coating	Laminating Materials:	Fabric
Product Name:	Oil Glue Based Laminating Machine	Usage:	Shoes And Hat And So On
Keywords:	Glue Coating And Laminating Machine	Port:	Shanghai,China

Product
HIGH EFFICIENCY AND ENERGY SAVING DOT TRANSFER LAMINATING MACHINE
Mainly used for clothing fabrics, not down, fleece, fleece, plush, non-woven fabrics, towels, cotton cloth, denim, TC cloth, lace cloth, leather, sponge, woven fabric, PU leather, PVC leather and other materials between the composite. Widely used in clothing,jacket, winter clothes, underwear, mat, car interiors, shoes and hats, bags, decoration, textile and other industries.
Features:
1. the machine has been upgraded on the basis of conventional glue point compound machine, such as automatic rectification,
automatic stripping, automatic centering, automatic opening and automatic blowing waste edge. The composite material has the
advantages of uniform coating, complex formation, no stretching deformation, no foaming, no wrinkling, softness, excellent air
permeability, neat winding, etc..
2. It has many kinds of composite materials. It is especially suitable for coating fabric and fabric, fabric and double or four
sides stretch knitted fabric, non-woven fabric and leather, sponge and flannelette, sponge and leather;
3. the collection and release volumes can be selected according to different materials for the appropriate configuration;
4. according to the characteristics of different materials, parts can be increased or reduced;
5. suitable for water-soluble and solvent based adhesive coating compound, realize one machine with multifunction.
6. the amount of glue and gluing patterns can be adjusted according to the material and actual needs.
7. The heating of the drum can be heated by electric, steam or heat conducting oil.
8. The width of the machine roll surface can be specified according to the maximum width of the actual material.
9. the whole system can use intelligent PLC program, touch screen or mechanical to operate control.

Main technical parameters:
1. power supply: 380V, 50HZ, 3 phase
2. effective width: 1600mm, according to the width of the material selected
3. roller width: 1800-3400mm, according to the width of the material selected
4. heating roller specification: 1500mm
5. heating mode: electric heating
6. coating method: glue point transfer coating
7. mechanical design speed: 5-50m/min
8. whole machine power: 68kW
9. outline size (L*W*H): approx. 12000*2450*2100mm
10. gross weight: about 5500kg

1.power supply:	380V, 50HZ, 3 phase
2. effective width:	1600mm, according to the width of the material selected
3. roller width:	1800-3400mm, according to the width of the material selected
4. heating roller specification:	1500mm electric heating
5. heating mode:	5. heating mode:
6. coating method:	glue point transfer coating
7. mechanical design speed:	5-50m/min
8. whole machine power:	68kW
9. outline size (LWH):	approx. 1200024502100mm
