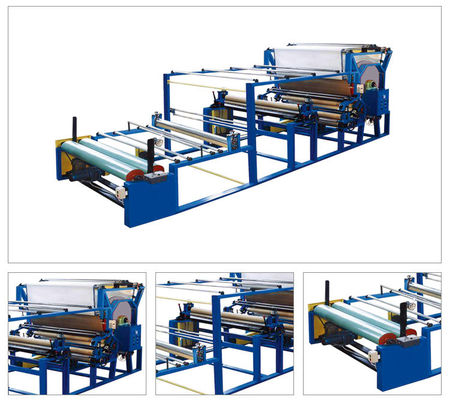

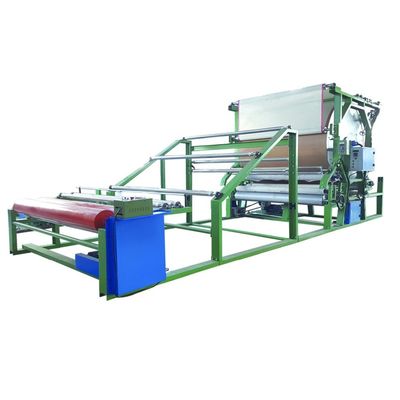

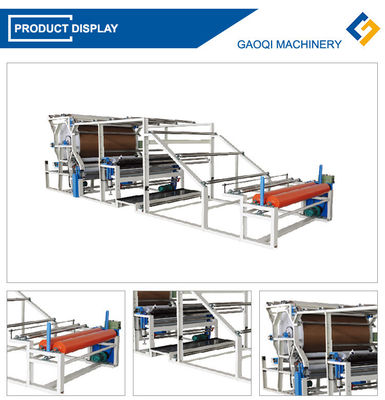

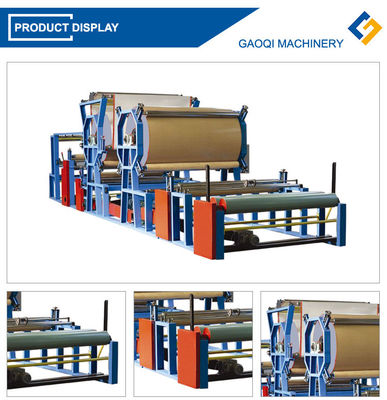

Machine Type Laminating Machine for TPU Film Fabric Water Glue Thermal Lamination

Large Image : Machine Type Laminating Machine for TPU Film Fabric Water Glue Thermal Lamination

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	GAOQI
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$12,500.00/sets >=1 sets
Supply Ability:	30 Set/Sets per Month

Contact Now

Machine Type Laminating Machine for TPU Film Fabric Water Glue Thermal Lamination

Description

Applicable Industries:	Manufacturing Plant	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	PLC	Machine Type:	Laminating Machine
Product:	Laminating Machine	Material Capabilities:	Fabric
Condition:	New	Warranty:	1 Year
Heating Method:	Electrical Heating/Gas Heating	Name:	Water Based Glue Laminating Machine
After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service	Local Service Location:	None
After-sales Service Provided:	Free Spare Parts, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, No After-sales Service	Port:	Shanghai

Product
Another Name:vertical net belt lamination machine ; Chenille carpet lamination machine; white glue lamination machine; water-based
glue lamination machine;shoe materials lamination machine;latex lamination machine;sponge and leather lamination machine, etc

Features:
1.White latex is used as adhesive and high temp. net belt can make sure laminates into one layer.
2.The automatic rectifying of net belt , ensure the laminated products are neat and flat.
3.Utilizes synchronous control with frequency conversion of operating system.
4.According to the characteristics of different materials, part of the device can be changed to achieve the final required.
5.Special specifications can be customized.

Brand	GAOQI
Power supply	380V, 50Hz, three-phase
Process speed	5-45m/min
Gross Power	About 50KW
Heating method	Electric/heat conduction oil/steam
Effective Width	1600mm / can be customized
Diameter of heating roller	1500mm / 1800mm / 2000mm
Spec. Of heating tube	30pcs*1.5kw=45kw
Roller width	1800-3500mm ( according to materials)
Coating Method	Roll Coating
Demension(LWH)	7300mm2450mm2650mm
Gross Weight	About 4500kg

Application:
Mainly used for gluing coating and laminating of coils and coils or coils and sheets .The raw materials are cashmere, polar fleece, plush, suede, sponge, fabrics, non-woven fabrics, EVA, leather ,silk wadding and so on. The finished products are widely used for garment, shoes and hats, luggage, gloves, leather, automotive interiors, toys, carpet , home textiles , etc.
