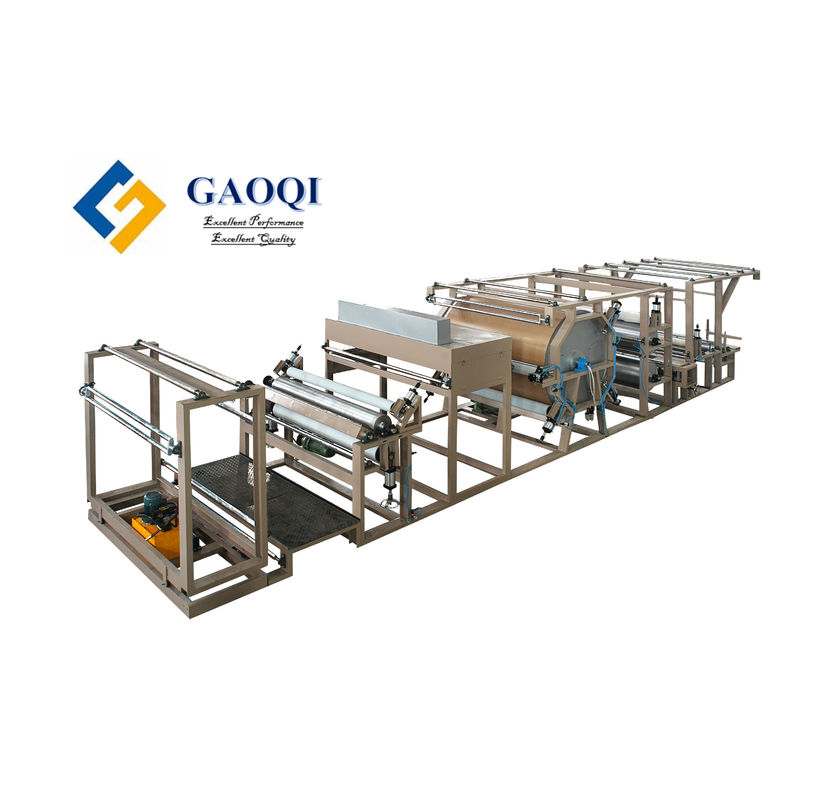

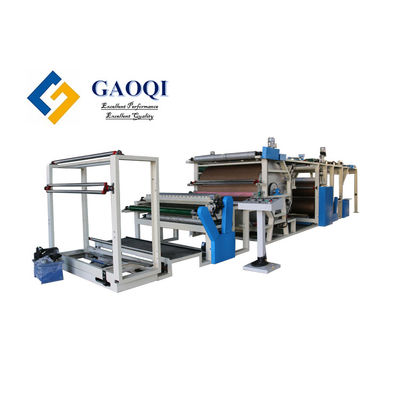

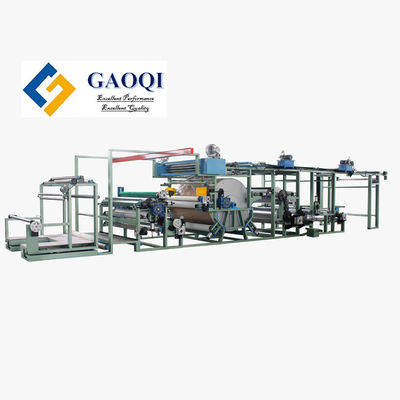

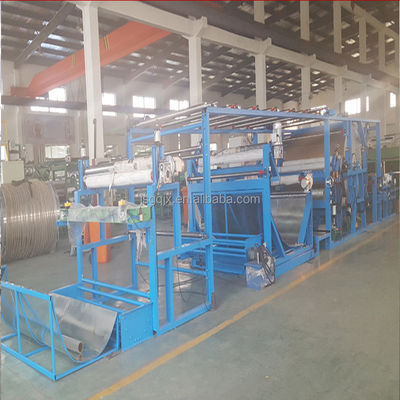

Commodity Full Automatic Thermal Underwear Material PU Glue Lamination Machine

Mainly used for apparel fabrics, denim, double-sided nylon, cashmere leather, suede, compound modal, fleece, inverted velvet, elastic cloth, non-woven fabric, TC fabric, leather, sponge, woven cloth and other materials. Widely used in clothing, automotive interior, shoes and hats, luggage, decoration, home textiles and other industries.

Features:

1, the machine as required, with active unwinding, multi group automatic correction, many groups of active open width flattening, composite drying, water cooling, automatic slitting, surface friction, winding and other units. The composite material has the advantages of uniform coating, complex formation, no stretching deformation, no foaming, no wrinkling, good hand feeling, soft and air permeability, regular winding up, etc..
2. It has many kinds of composite materials, and is especially suitable for coating composite materials, such as cloth, cloth, non-woven cloth, cloth, leather, sponge and flannelette, sponge and leather;
3, the collection and release volumes can be selected according to different materials for the appropriate configuration;
4 , according to the characteristics of different materials, parts can be increased or reduced;
5, suitable for water-soluble and solvent based adhesive coating compound, realize one machine with multifunction.
6, the amount of glue and gluing patterns can be adjusted according to the material and actual needs.
7. The heating of the drum can be heated by electric, steam or heat conducting oil.
8. The width of the machine roll surface can be specified according to the maximum width of the actual material.
9, the whole system can use intelligent PLC program, touch screen or mechanical to operate control.

Main technical parameters:

1. power supply: 380V, 50HZ, 3 phase
2. effective width: 1600mm, according to the width of the material selected
3. roller width: 1800-3500mm, according to the width of the material selected
4. heating roller specification: 1500mm
5. heating method: electric heating, heat conduction oil or steam heating
6. coating method: glue point transfer coating
7. mechanical design speed: 5-50m/min
8. whole machine power: About 50KW
9. outline size (L*W*H): approx. 1100*2400*2200mm
10. gross weight: about 8500Kg
