16T Hydraulic Clicking Press Machine with Cutting Force After Service Online Support

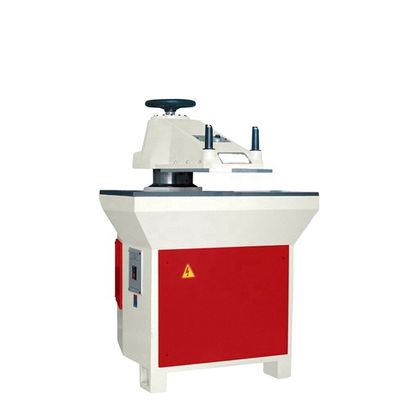

Large Image : 16T Hydraulic Clicking Press Machine with Cutting Force After Service Online Support

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	GAOQI

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$1,000.00 - $4,000.00/sets
Packaging Details:	12ton cutting press Hydraulic Clicking Press Machine <br>Inner Package: Film, <br>External Package: Wood Case
Supply Ability:	30 Set/Sets per Month cutting press machine

Contact Now

16T Hydraulic Clicking Press Machine with Cutting Force After Service Online Support

Description

Condition:	New	Applicable Industries:	Manufacturing Plant
Showroom Location:	None	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	Gear
Warranty:	1 Year	Cutting Force:	10T,12T,16T,20T
Color:	Customized	Name:	Clicker Press
After Warranty Service:	Online Support	Local Service Location:	None
After-sales Service Provided:	Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support	Port:	Shanghai

12ton cutting press Hydraulic Clicking Press Machines

Usage and features:

1,Suitable for molding cutter die blanking, cutting operations on a variety of non metallic materials.
2,Automatic cutting stroke adjustment: change the knife mold height without any adjustment.
3,Fast speed, low energy consumption.
4,Casting body, long service life, low noise.

Technical Specifications:

Model	GSB-2C/10	GSB-2C/12	GSB-2C/16	GSB-2C/200
Max. Cutting Force	100KN	120KN	160KN	200KN
Max scissoning force	0.10m/s	0.098m/s	0.10m/s	0.10m/s
Seissor speed	5-75mm	5-60mm	5-75mm	5-75mm
Stroke adjustment	60-120mm	60-120mm	65-150mm	65-150mm
Distance between upper table and lower able	400*800mm	400*900mm	450*900mm	500*1000mm
Overall dimension	8507001250mm	9008001300mm	9009001380mm	10009001380mm
Motor power	0.75KW	1.1KW	1.1KW	1.5KW

16T Hydraulic Clicking Press Machine with Cutting Force After Service Online Support 0

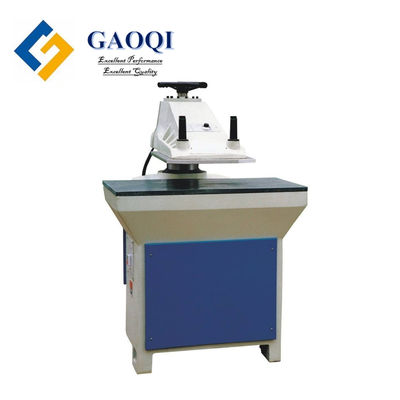

16T Hydraulic Clicking Press Machine with Cutting Force After Service Online Support 2

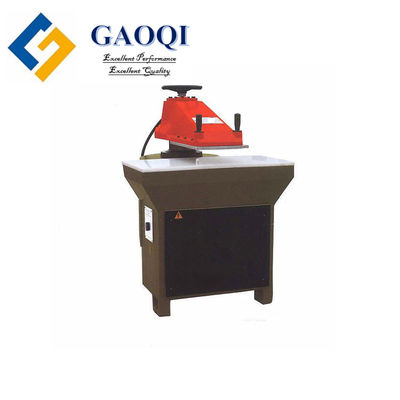

Click on this text, we will bring you more surprises! 16T Hydraulic Clicking Press Machine with Cutting Force After Service Online Support 3
