Product Description

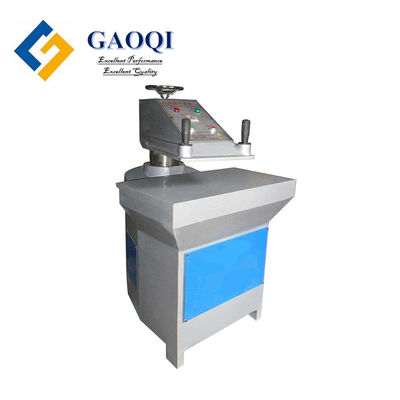

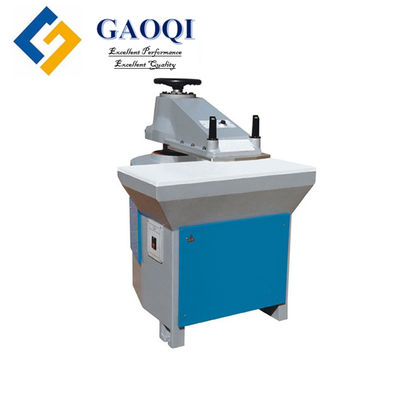

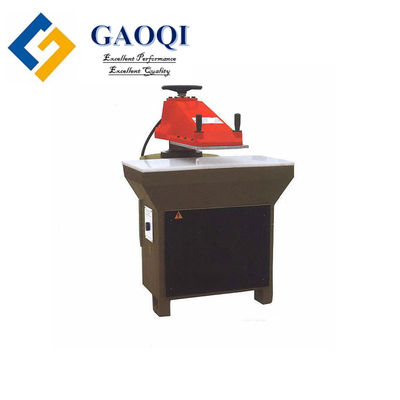

Hydraulic Swing Arm Leather Strap Cutting Press Machine
With user-friendly design, this machine is safe and simple to operate, users only need to place the material on the bed of the press, position the cutting die on the material and press the twin operating buttons. The beam descends under hydraulic power to cut the required shape from single or multiple layers of material.This die cutting machine has a huge range of applications in manufacturing industry. Also known as clicking presses or clicker presses.
Application:
It can be used for cutting gasket, shoes, gloves, balls, bags, sand paper, carpet, toys industries etc.
Features:
1. Suitable for the cutting for all non-metallic material materials in single layer or multiple layers.
2. Fast, quiet, easy to operate.
3. Swing beam allows full access and visibility.
4. Use all standard cutting die types – strip steel, wooded forme, forged steel.
5. Low friction swing beam varying tool heights can be used without adjustment.
6. Double acting hydraulic cylinder.
7. Simple daylight adjustment.
8. Quiet, vibration free operation.
9. Safe, twin button operation.
10. Complete with high grade polypropylene cutting board, hydraulic oil and operating manual.
Main technical parameters:
| Model | GSB-2C/12 | GSB-2C/20 | GSB-2C/25 |
| Max. cutting force | 120KN | 200KN | 250KN |
| Width of swing arm | 300*450mm | 350*550mm | 450*550mm |
| Stroke adjustment range | 5-55mm | 5-75mm | 5-75mm |
| Cutting speed | 0.10m/s | 0.10m/s | 0.10m/s |
| Distance between upper and lower plate | 60-140mm | 60-150mm | 60-150mm |
| Working table size | 900*400mm | 1000*500mm | 1000*500mm |
| Motor Power | 1.1KW | 1.5KW | 1.5KW |
